Tech specs
Brand
Atlona
Product Line
Atlona
Model
AT-HDVS-CAM
Manufacturer
Atlona
Protocols
HTTP, TCP/IP
Connectivity Technology
Wired
Ports

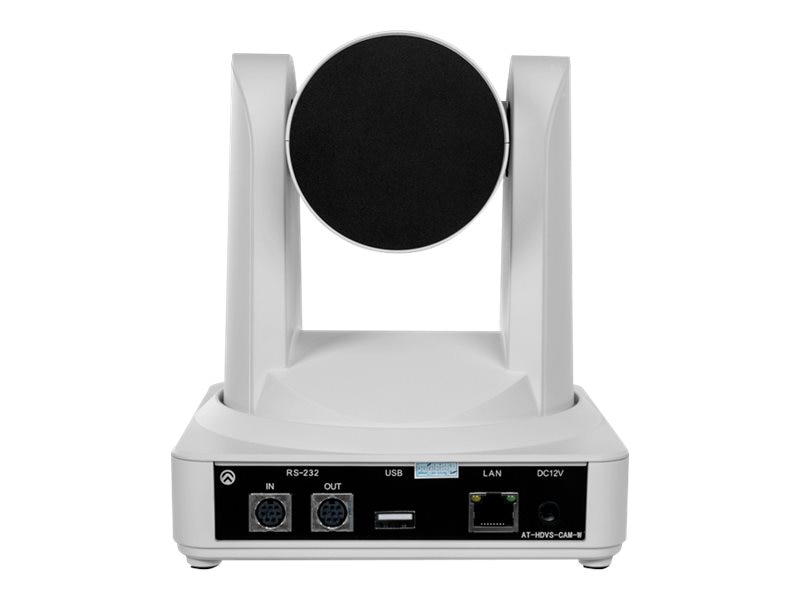

LAN - RJ-45, Serial RS-232 input, Serial RS-232 output, USB 2.0 - 4 pin USB Type A
Image Sensor Size
1/2.8"
Image Sensor Type
CMOS
Tilt
-30 to +90
Camera Mechanical Design
Pan / tilt / zoom
Control Interface
RS-232, VISCA
Digital Video Capture Resolution
1024 x 576, 1024 x 768, 1280 x 720, 176 x 144, 1920 x 1080, 320 x 180, 320 x 240, 352 x 288, 640 x 360, 640 x 480, 720 x 576, 800 x 600, 960 x 540
Max Frame Rate
30 frames per second
Max Panning Speed (degree/sec)
180
Max Tilting Speed (degree/sec)
80
Max Video Resolution
1920 x 1080
Panning Range (degree)
-170 to +170
Video Capture
1920 x 1080 @ 30 fps
Video Modes
1080/30p, 720p
Camera Mount Type
Wall mount
Camera Type
Conference camera
Frequency
50/60 hertz
Low Voltage Power
DC 12 V
Power Consumption Operational
12 watt
Power Device Type
Power adapter
Rated Current
1 ampere
Angular Field of View (H, Max, Degree)
60.9
Angular Field of View (H, Min, Degree)
6.43
Power Device Form Factor
External
Focus Modes
Automatic, Manual
Lens Aperture
F/1.6-3.0
Max Focal Length
47 millimetre
Max Operating Temperature
122 degree Fahrenheit
Min Focal Length
4.7 millimetre
Min Operating Temperature
14 degree Fahrenheit
Minimum Illumination
0.5 lux F1.8 - AGC on
Operating Humidity
20 - 80% (non-condensing)
Optical Zoom
10
Sensor Size (metric)
9.1 mm (1/2.8")
Total Pixels
2,070,000 pixels
Video Input
Color
Features
255 preset positions, Auto exposure control, Auto gain control, Auto white balance, Brightness control, Color control, Contrast control, Google Hangouts compatible, Microsoft Lync compatible, Microsoft Teams compatible, Pelco Protocol, RingCentral Meetings compatible, Saturation control, Sharpness control, Skype for Business compatible, Slack compatible, Unified communications platform compatible, WebEx compatible, Zoom compatible
Packaged Quantity
1
Cables
1 x serial cable - external, 1 x USB cable - external
Included Accessories

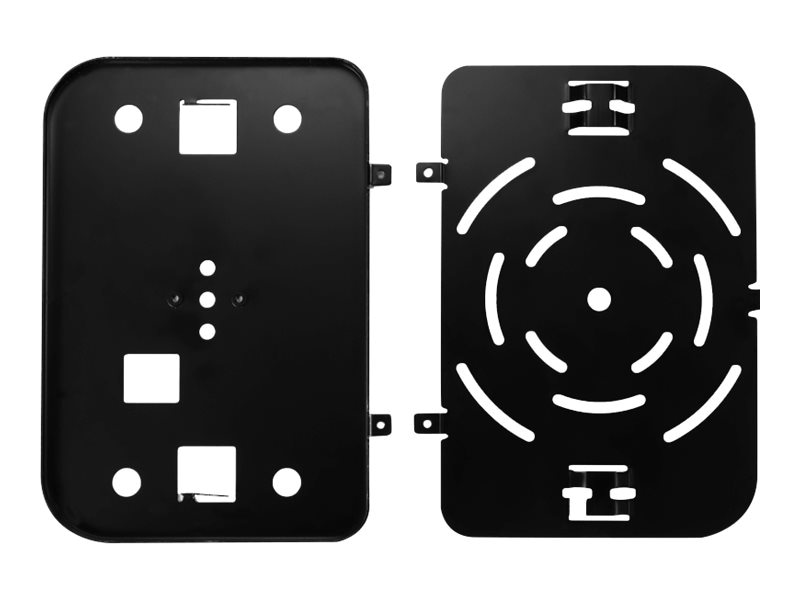

Lens cap, Remote control, Screw kit, Wall mount bracket
Height
6.6 inch
Weight
3.09 lbs
Width
5.9 inch
Depth
5.9 inch
Color
White
Color Category
White
Compliant Standards
FCC
Service & Support Details
Limited warranty - 10 years
Limited Warranty
10 Year
