Tech specs
Brand
Cisco
Product Line
Cisco Catalyst

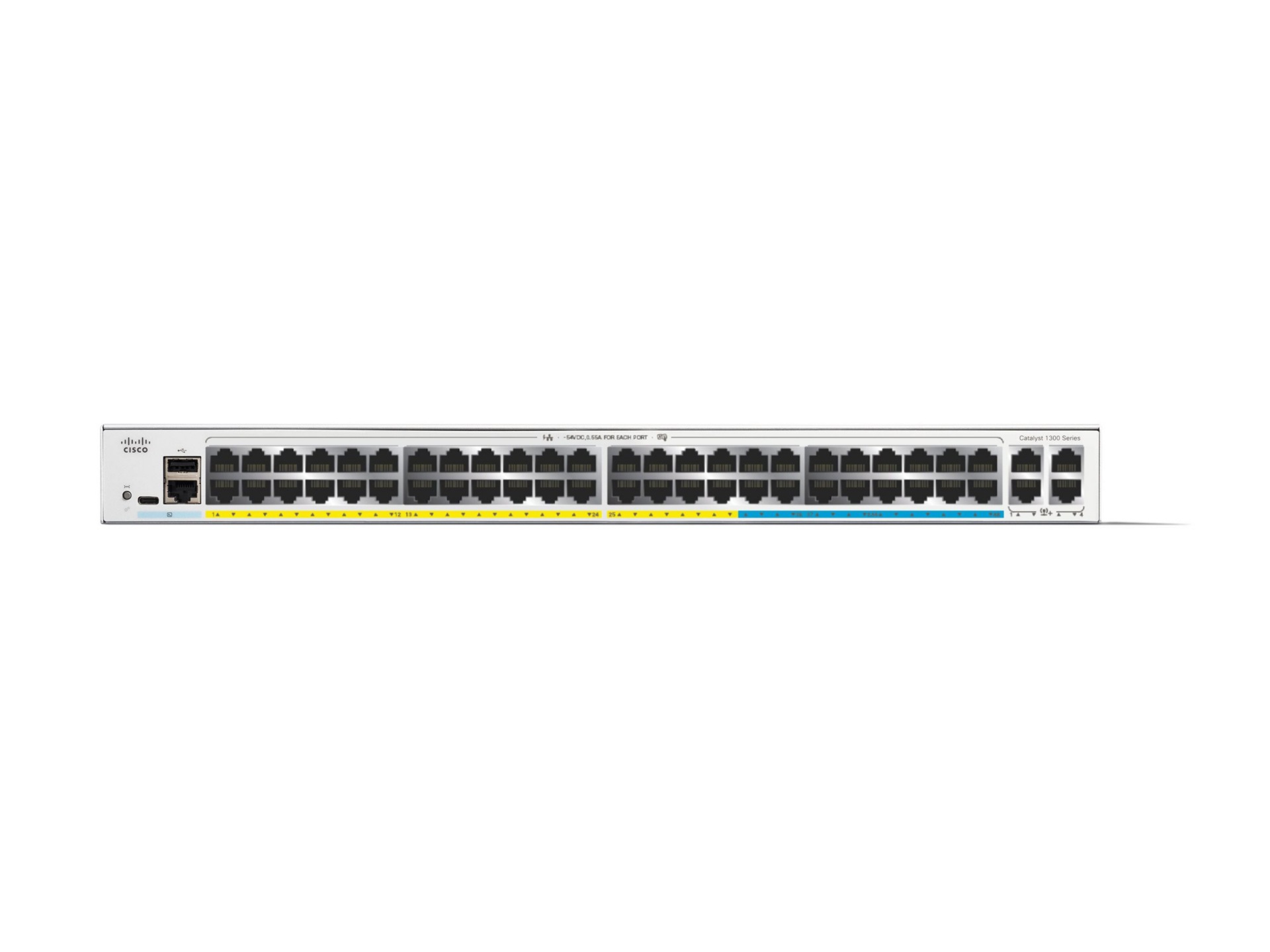

Model
1300-48MGP-4X
Manufacturer
Cisco Systems
Clock Speed
1.4 GHZ
Processor Brand
ARM
Flash Memory Installed
512 megabyte
Memory Technology
DDR4 SDRAM
RAM Installed
1 GB
Advanced Switching
Layer 3
Compliant Standards
IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Features
1 fan, ACL support, Address Resolution Protocol, ARP inspection, Auto Surveillance VLAN, Boot integrity, BOOTP support, BPDU Guard, Broadcast Storm Control, Cable length detection, Chip guard, CLI management, CPE VLAN, DAD, DAI, DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 guard, DiffServ support, DNS client, DoS attack prevention, DoS protection, DSCP based CoS, Dynamic routing, Energy-Efficient Ethernet (EEE), GARP, Guest VLAN, GVRP, High Availability, HoL Blocking Prevention, IGMP proxy, IGMP querier, IGMP snooping, IP source guard, IPMB, IPv4 and IPv6 dual stack, iSCSI traffic optimization, LACP, LAG, Layer 3 routing, LLDP, LLDP-MED, Loopback detection, MAC address authentication, MAC based VLAN, MLD proxy, MLD snooping, MSTP support, Multicast Storm Control, MVR, NDP, Path MTU discovery, Persistent PoE, PoE scheduling, Port mirroring, Port Security, Private VLAN, Protocol-based VLANs support, PVE, PVST+, Q-in-Q tunneling, QoS, RA guard, Reset button, Router advertisement guard, RPVST+, RSPAN, RSTP, SCP, SCT, sFlow, SSD, Storm Control, STP loop guard, STP Root Guard, STP support, TCP congestion, Telnet client, Telnet server, Time-based port operation, ToS, TPID, Trustworthy systems, UDLD, UDP, Unicast Storm Control, Unknown Storm Control, VLAN management, VLAN mirroring, VLAN support, Web authentication, WRR, Zero-Touch Deployment
Form Factor (Hubs & Switches)
Rack-mountable
Jumbo Frame Support
9000 bytes
MAC Address Table Size
16000 entries
Manageable
Yes
Max Units In A Stack
8
PoE Budget
370 watt
Ports
48
Power Over Ethernet (PoE)
PoE+
Product Type
Switch
Remote Management
CLI, DHCP, HTTP, HTTPS, ICMP, RADIUS, RMON, SCP, SNMP, SNMP 2c, SNMP 3, SSH, SSH-2, Syslog, Telnet, TFTP
Routing Protocol
CIDR, IGMP, IGMPv2, IGMPv3, MLD, MLDv2, MSTP, Policy-based routing (PBR), RIP-2, RSTP, Static IP routing, STP
Stackable
Stackable
Status Indicators
Link/activity/speed, PoE, System
Subcategory
Network hubs and switches
Switching Type
10 Gigabit Ethernet
QSFP Slots
10 Gigabit SFP+
Interface Provided
1 x console RJ-45, 1 x USB-C console, 16 x 2.5GBase-T RJ-45 PoE+, 32 x 10/100/1000 Base-T RJ-45 PoE+, 4 x 10GBase-X SFP+
Port Quantity
32
Port Type
10/100/1000 (PoE+)
Ports Type (2nd)
2.5G (PoE+)
Frequency
50 - 60 hertz
Required Voltage
AC 100-240 volt
Encryption
MD5, SSL
Humidity Range Storage
10 - 90% RH (non-condensing)
Max Operating Temperature
122 degree Fahrenheit
Max Storage Temperature
158 degree Fahrenheit
Min Operating Temperature
23 degree Fahrenheit
Min Storage Temperature
-13 degree Fahrenheit
MTBF
856,329 Hours
Operating Humidity
10 - 90% RH (non-condensing)
Authentication Method
RADIUS, TACACS+
Capacity
ACL rules: 1024, IGMP multicast groups: 2000, IPv4 interfaces: 128, IPv4 routes (static): up to 990, Link aggregation groups: 8, Link aggregation ports: 8, MSTP instances: 8, Packet buffer size: 3 MB, Priority queues: 8, RPVST+ instances: 126, VLAN IDs: 4093
Device Type
Internal power supply
Packaged Quantity
1
Performance
Forwarding rate (64-byte packets): 166.65 Mpps, Switching capacity: 224 Gbps
Ports (2nd) Quantity
16
Ports (3rd) Quantity
4
Included Accessories
Mounting kit, Pointer card
Height
1.7 inch
Weight
11.97 lbs
Width
17.5 inch
Depth
13.8 inch
Color Category
White
Compliant Standards
CSA 22.2, FCC CFR47 Part 15, Plug and Play, RFC1042, RFC1071, RFC1123, RFC1141, RFC1155, RFC1157, RFC1213, RFC1215, RFC1286, RFC1350, RFC1442, RFC1451, RFC1493, RFC1533, RFC1541, RFC1542, RFC1573, RFC1624, RFC1643, RFC1700, RFC1757, RFC1867, RFC1907, RFC1981, RFC2011, RFC2012, RFC2013, RFC2030, RFC2131, RFC2132, RFC2233, RFC2460, RFC2576, RFC2616, RFC2618, RFC2665, RFC2666, RFC2674, RFC2737, RFC2819, RFC2863, RFC3164, RFC3176, RFC3411, RFC3412, RFC3413, RFC3414, RFC3415, RFC3416, RFC3484, RFC3595, RFC4007, RFC4291, RFC4293, RFC4330, RFC4443, RFC4861, RFC4862, RFC5214, RFC768, RFC783, RFC791, RFC792, RFC793, RFC813, RFC826, RFC854, RFC855, RFC856, RFC858, RFC879, RFC894, RFC896, RFC919, RFC920, RFC922, RFC950, RFC951, UL 62368, WEEE
ENERGY STAR Certified
No
EPEAT Compliant
No
TCO Certified
No
Service & Support Details
Limited warranty - lifetime - response time: next business day, Technical support - return to factory - 1 year
Limited Warranty
Limited Lifetime
