Tech specs
Brand
Vaddio
Product Line
Vaddio
Model

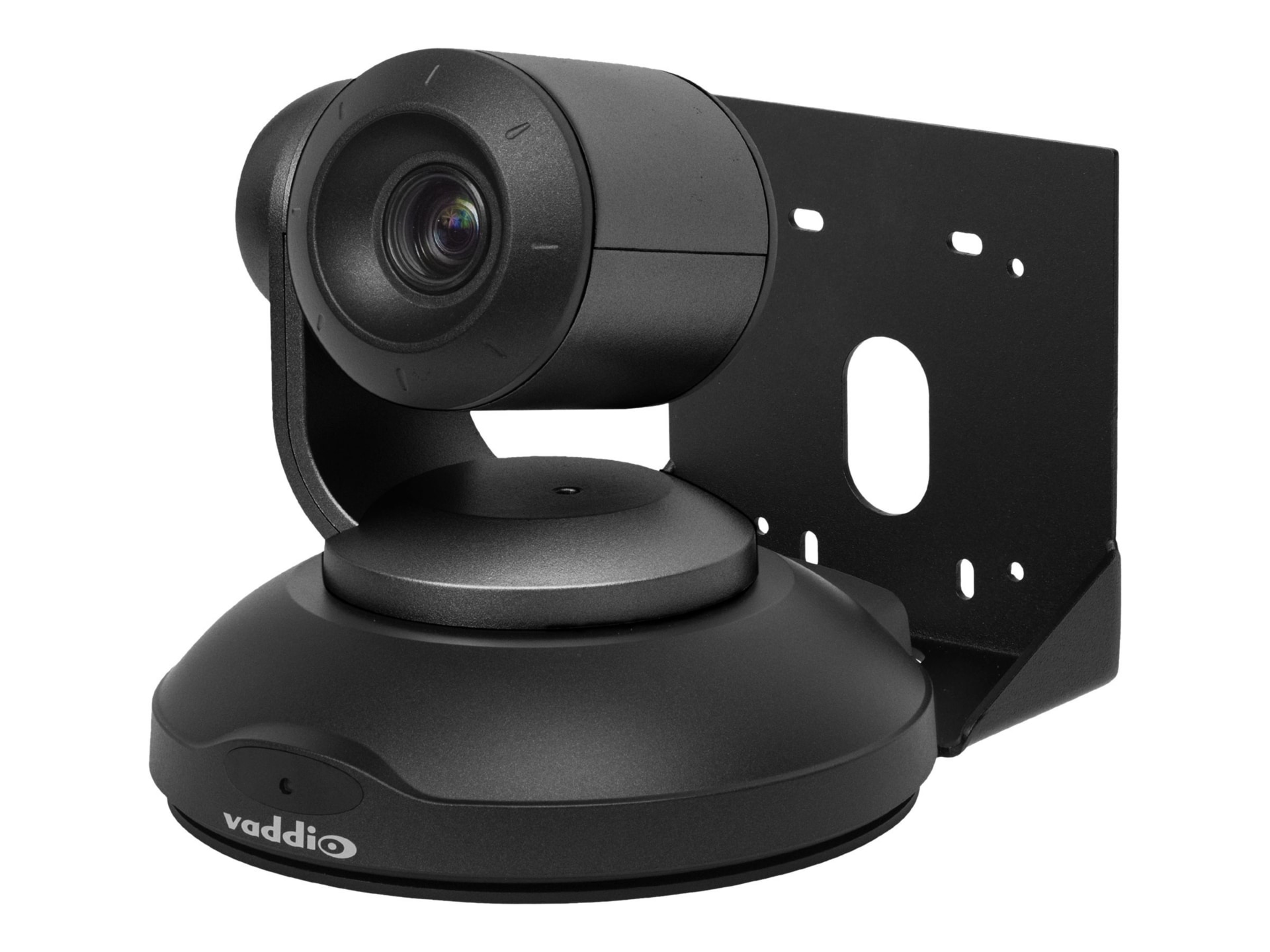

ConferenceSHOT AV HD Conference Room System - PTZ Camera, Speaker, and Two CeilingMIC Microphones - Black
Manufacturer
VADDIO
Host Interface
USB 3.0
Network Interface
Ethernet 10Base-T/100Base-TX/1000Base-T
Protocols
Telnet
Connectivity Technology
Wired
Ports
2 x microphone - RJ-45, Audio line out - terminal block, LAN/power - RJ-45, USB 3.0 - 9 pin USB Type B
Image Sensor Size
1/2.8"
Image Sensor Type
Exmor CMOS
Tilt
-30 to +90
Touchscreen
No
Audio Support
Yes
Audio Support Features
Two-way audio capability
Camera Mechanical Design
Pan / tilt / zoom
Digital Video Capture Resolution
1920 x 1080
Max Frame Rate
60 frames per second
Max Panning Speed (degree/sec)
90
Max Tilting Speed (degree/sec)
90
Max Video Resolution
1920 x 1080
Panning Range (degree)
-162 to +162
Video Modes
1080/15p, 1080/25p, 1080/30p, 180p
Camera Mount Type
Wall mount
Camera Type
Conference camera
Low Voltage Power
PoE Plus
Power Consumption Operational
25 watt
Power Device Type
Power injector
Angular Field of View (H, Max, Degree)
74
Angular Field of View (H, Min, Degree)
7.6
Power Device Form Factor
External
Focal Length Control
Motorized zoom
Focus Modes
Automatic, Manual
Lens Aperture
F/1.8-3.4
Max Focal Length
38 millimetre
Max Operating Temperature
104 degree Fahrenheit
Min Focal Length
3.8 millimetre
Min Focus Distance
0.4 inch
Min Operating Temperature
32 degree Fahrenheit
Minimum Illumination
0.4 lux F1.6
Operating Humidity
20 - 80% (non-condensing)
Optical Zoom
10
Sensor Size (metric)
9.1 mm (1/2.8")
Total Pixels
2,380,000 pixels
Video Formats
H.264
Video Input
Color
Bundled With
2 Vaddio CeilingMIC microphones and ConferenceSHOT AV Speaker
Country
United States
Features
16 preset positions, Auto gain control, Auto white balance, Backlight Compensation (BLC), Manual gain control, Manual white balance, Noise Reduction, Webcam Support (UVC)
Kit
Bundle
Packaged Quantity
1
Cables
1 x audio / power cable - external - 6.5 in, 1 x network cable - external - 10 ft, 1 x USB 3.0 to USB 3.0 type B cable - external - 6 ft, 2 x network cable - external - 3 ft
Included Accessories
2 cable clamp grommets, 2 ceiling tile braces, 2 CeilingMIC interface boxes, 2 silicone split strain relief boots, 4 ceiling trim ring plates, 4-position phoenix-style connector, Remote control, Screws, Speaker mounting rail with gasket, Wall mount kit
Height
6.3 inch
Weight
3 lbs
Width
6.1 inch
Depth
5.5 inch
Color
Black, White
Color Category
Black, White
Compliant Standards
FCC, UL
ENERGY STAR Certified
No
EPEAT Compliant
No
TAA Compliant
Yes
TCO Certified
No
Service & Support Details
Limited warranty - 3 years
Limited Warranty
3 Year
