Virtual Ink mimio
Mfg # 600-0001
CDW # 189264
| UNSPSC 43211709
Know your gear
You've got to see it to believe it!
Attach mimio to your existing whiteboard and plug into your PC. Slip any standard Expo dry erase marker into one of mimio's four color-coded marker jackets and start writing. Your meeting notes are captured in color and in real time and saved directly to your PC. Share your meeting notes with remote participants in real time over an intranet or the Internet. Review and edit your notes, or export the information to other applications and send it anywhere via the Web, fax, or e-mail.
Features
Mimio retrofits to your existing whiteboard, flat surface, and flip charts
It's portable and lightweight
Share your meeting notes in real time over the Internet or your company's intranet
Free your meeting participants or students from taking notes for complete collaboration
Unique mimio software lets you review and export your notes directly into Word, PowerPoint, and other PC applications
Eliminate time spent transcribing notes and producing handouts.
Specifications:
Marker Jackets:4 marker jackets that use patent-pending Stylus Tracking technology based on ultra- sonic and infrared transmitters
4 standard Expo dry-erase markers-black, red, green and blue
Allows detection between 2" away from a detector and up to 9' for an 4' x 8' board
1.5V AAA batteries included
Eraser: Combined 4" and 1" circular erasers that use patent-pending Stylus Tracking technology
1.5V AAA battery included

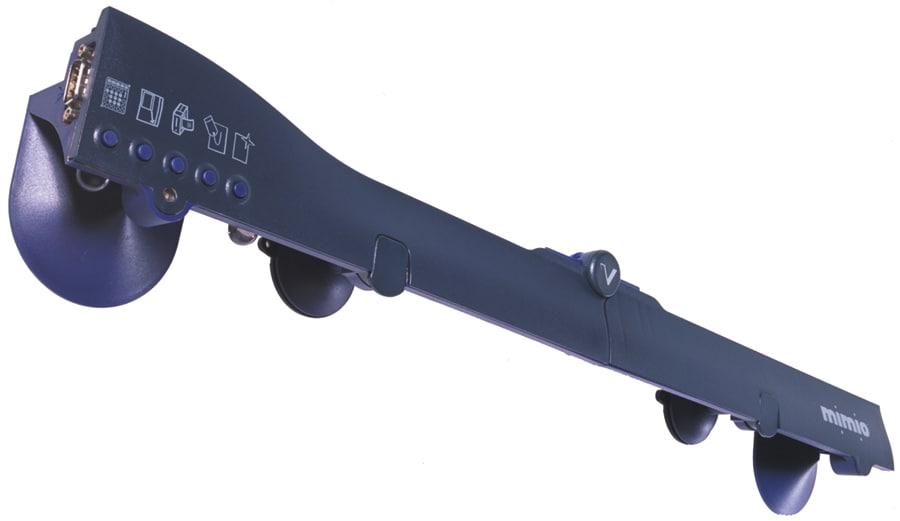

Capture Bar:
24" bar with infrared detectors, microprocessor, serial interface, and five function switches
Retrofits your existing 2' x 3' to 4' x 8' whiteboard by attaching to the upper left-hand corner with two lever-action, rubber suction cups
180 degree field of view
Connects to PC via 10' RS-232 serial cable with keyboard pass-through for power
Optional connection through a USB port using a 3rd party adapter
Five function switches: New Board; Tag Board; Print Board; Maximize Board; Locate Control Panel
Control Panel Decal: Allows access and control of the function switches from anywhere on the whiteboard and includes a calculator function
Software: The application supports these features:
Record and playback everything you write or draw on your whiteboard in four colors
Collaborate with remote participants in real time over the Internet or a corporate intranet using Microsoft NetMeeting
Data exchange to and from other applications through the Windows clipboard
Supports mimio.INK file format and BMP, JPEG, and HTML file export
Variable size boards including standard and custom sizes
Markers and eraser, with user-configurable colors and widths
Audible calculator and calibration cues
Projection display support as a mouse input with mimio Mouse Software (included)
Color printing capabilities
Context sensitive and task oriented help files
Minimum System Requirements:
Windows 95 or Windows 98, Windows NT
Available 9-pin DB-9 serial port
16 MB of RAM (32 MB recommended)
To use mimio and NetMeeting requires-166 Mhz Pentium and 32Mb of RAM and TCP/IP network with support for 32-bit apps
10 MB of available hard-drive space
