Tech specs
Brand
Aruba
Product Line
HPE Aruba
Model

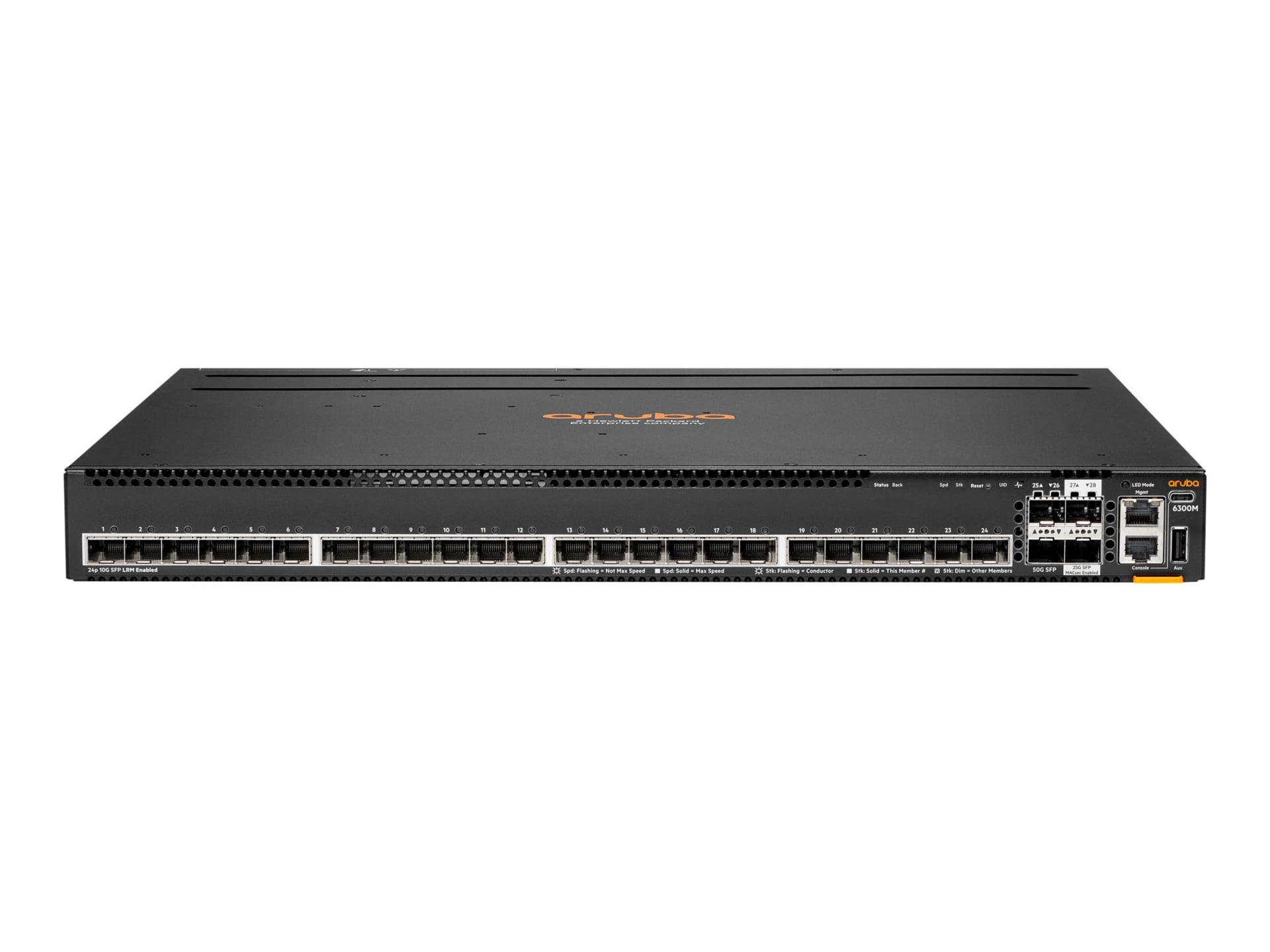

6300M 24p SFP+ LRM support and 2p 50G and 2p 25G MACsec Switch
Manufacturer
Aruba
Clock Speed
1.8 GHZ
Processor Brand
ARM
Processors Installed
1
Flash Memory Installed
32 GB
Memory Technology
DDR4 SDRAM
RAM Installed
8 GB
Advanced Switching
Layer 3
Compliant Standards
IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad (LACP), IEEE 802.3ae
Features
16MB packet buffer, Access Control List (ACL) support, ARP support, Aruba Virtual Switching Framework (VSF), Auto-uplink (auto MDI/MDI-X), Bridge protocol data unit (BPDU), Broadcast storm protection, Class of Service (CoS), Deficit Weighted Round Robin (DWRR), DHCP protection, DHCP support, Dual firmware images, Dynamic IPv6 lockdown, Fan tray, High Availability, IGMP snooping, IP multicast, IPv4 and IPv6 dual stack, IPv6 support, Jumbo Frames support, LLDP support, LRM optics support, Management Information Base (MIB), Microsoft Network Load Balancer (NLB), MLD snooping, Multicast Storm Protection, Multiple Spanning Tree Protocol (MSTP) support, Multiple VLAN Registration Protocol (MVRP), ND snooping, Network Timing Protocol (NTP), Packet storm protection, Per-VLAN Spanning Tree (PVST), Protocol Independent Multicast (PIM), Quality of Service (QoS), RA guard, Rapid Per-VLAN Spanning Tree Plus (PVRST+), Rapid Reconfiguration of Spanning Tree (RSTP), Rapid Spanning Tree Protocol (RSTP) support, Spanning Tree Protocol (STP) support, Strict Priority (SP), Syslog support, Type of Service (ToS), Unicast Storm protection, Uni-Directional Link Detection (UDLD), Virtual Extensible LAN (VXLAN), VLAN support, VLAN Tagging, Zero-touch provisioning (ZTP)
Form Factor (Hubs & Switches)
Rack-mountable
Jumbo Frame Support
9198 bytes
MAC Address Table Size
32768 entries
Manageable
Yes
Ports
24
Product Type
Switch
Remote Management
CLI, HTTPS, RMON, SFTP, SNMP, SNMP 2c, SNMP 3, SSH, Telnet, TFTP
Routing Protocol
BGP, BGP-4, Bidirectional Forwarding Detection (BFD), ECMP, EGP, GRE, IGMP, IGMPv2, IGMPv3, MLD, MSDP, MSTP, OSPF, OSPFv2, OSPFv3, PIM-SM, Policy-based routing (PBR), RSTP, Static IPv6 routing, STP, VRRP
Stackable
Stackable
Subcategory
Network hubs and switches
Switching Type
Gigabit Ethernet
QSFP Slots
1 Gigabit / 10 Gigabit / 25 Gigabit SFP
Interface Provided
1 x console, 1 x management, 1 x USB Type A, 1 x USB-C console, 2 x 10/25Gbit LAN SFP with MACsec, 2 x 1Gbit/10Gbit/25Gbit/50Gbit SFP, 24 x Gigabit / 10Gbit LAN SFP+ with MACsec
Port Quantity
24
Port Type
1 Gigabit / 10 Gigabit SFP+
Ports Type (2nd)
1 Gigabit / 10 Gigabit / 25 Gigabit / 50 Gigabit SFP56 (uplink / stacking)
Frequency
50/60 hertz
Hot-Plug
Hot-plug
Power Supplies Supported
2
Redundant Power Supply
Optional
Redundant Power Supply Supported
1+1 (with optional power supply)
Humidity Range Storage
15 - 95% (non-condensing)
Max Operating Temperature
113 degree Fahrenheit
Max Storage Temperature
158 degree Fahrenheit
Min Operating Temperature
32 degree Fahrenheit
Min Storage Temperature
-40 degree Fahrenheit
Operating Humidity
15 - 95% (non-condensing)
Airflow Direction
Front and side to back
Authentication Method
RADIUS, Secure Shell (SSH), TACACS+
Capacity
IGMP groups: 8192, IPv4 ACL entries (egress): 8192, IPv4 ACL entries (ingress): 20480, IPv4 host table capacity: 49152, IPv4 routes (Multicast): 8192, IPv4 routes (Unicast): 61000, IPv6 ACL entries (egress): 2048, IPv6 ACL entries (ingress): 5120, IPv6 host table capacity: 49152, IPv6 routes (Multicast): 8192, IPv6 routes (Unicast): 61000, MAC ACL entries (egress): 8192, MAC ACL entries (ingress): 20480, MLD groups: 8192, Switched virtual interfaces (SVIs): 1024
Device Type
Internal power supply
Packaged Quantity
1
Performance
Latency (1 Gbps): 4.24 µs, Latency (10 Gbps): 1.5 µs, Latency (25 Gbps): 2.91 µs, Latency (50 Gbps): 3.49 µs, Stacking bandwidth: 200 Gbps, Switching capacity: 880 Gbps, Throughput: 660 Gbps
Ports (2nd) Quantity
2
Ports (3rd) Quantity
2
Rack Mounting Kit
Included
Included Accessories
Fan tray
Height
1.7 inch
Height (Rack Units)
1
Weight
12.06 lbs
Width
17.4 inch
Depth
15.2 inch
Color Category
Black
Compliant Standards
CAN/CSA C22.2 No. 60950-1-07, CISPR 22 Class A, CISPR 24:2010, CISPR 32 Class A, CISPR 35, EN 50581:2012, EN 55022:2010, EN 55024:2010 Class A, EN 55032:2012 Class A, EN 55035:2017, EN 60825-1:2007, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013, EN 61000-3-2, EN 61000-3-2:2014, EN 61000-3-3, EN 61000-3-3:2013, FCC Class A certified, FCC Part 15, ICES-003 Class A, IEC 60825-1:2007 Class 1, IEC 60950-1:2005, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, RoHS, UL/CSA60950-1 (2nd Edition), VCCI Class A, WEEE
ENERGY STAR Certified
No
EPEAT Compliant
No
TCO Certified
No
Service & Support Details
Limited warranty - lifetime
Limited Warranty
Limited Lifetime
