Tech specs
Brand
ATEN
Product Line
ATEN CE
Model
920 Local and Remote Units
Manufacturer
Aten Technologies
Compliant Standards
HDCP 2.2, USB 2.0
Connectivity Technology
Wired
Data Link Protocols
HDBaseT 2.0
Features
3D support, 8KV/15KV ESD Protector, EDID Buffer, Firmware upgradable, HDCP compliant, Metal housing
Form Factor
External
Max Transfer Distance
492 ft
Product Type
KVM / audio / serial / USB / network extender
Status Indicators
Link/activity, Power, Video
Interface Provided

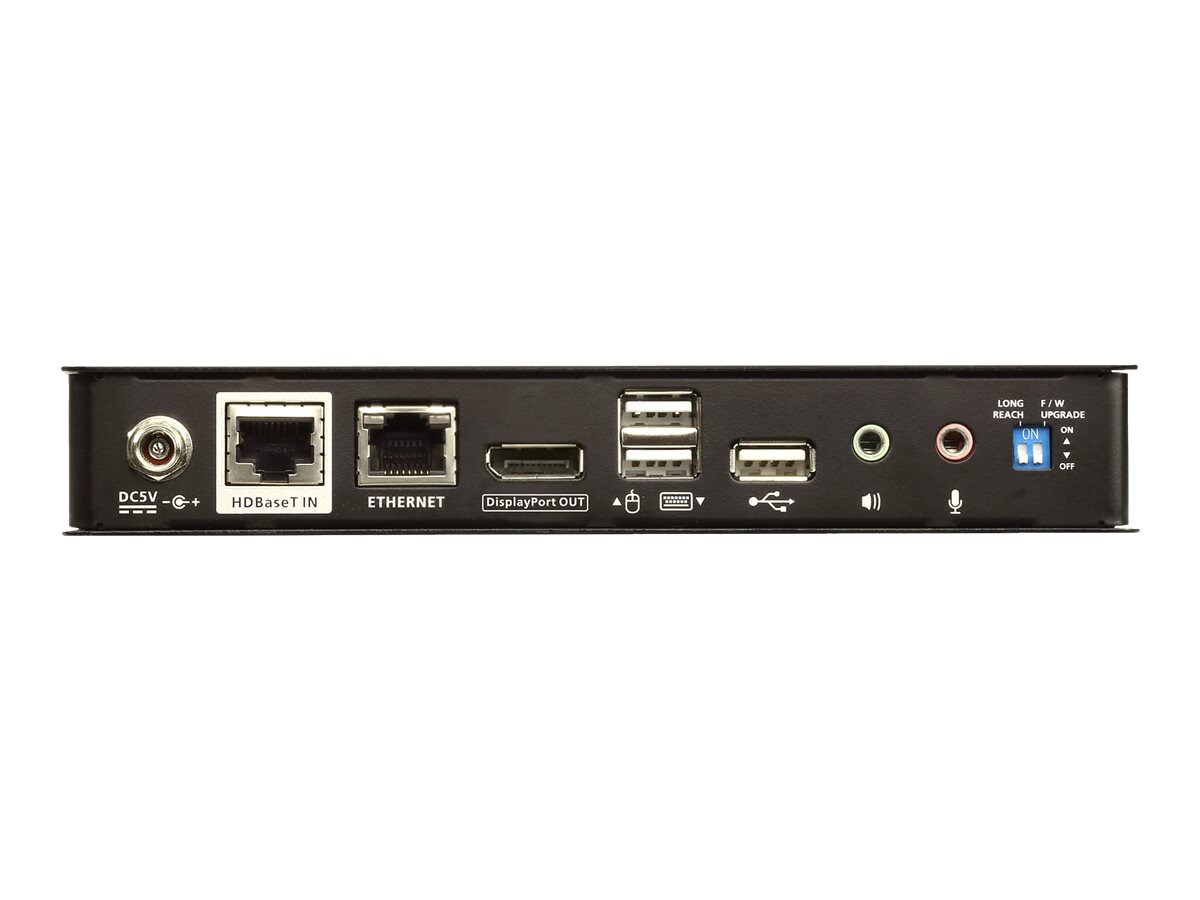

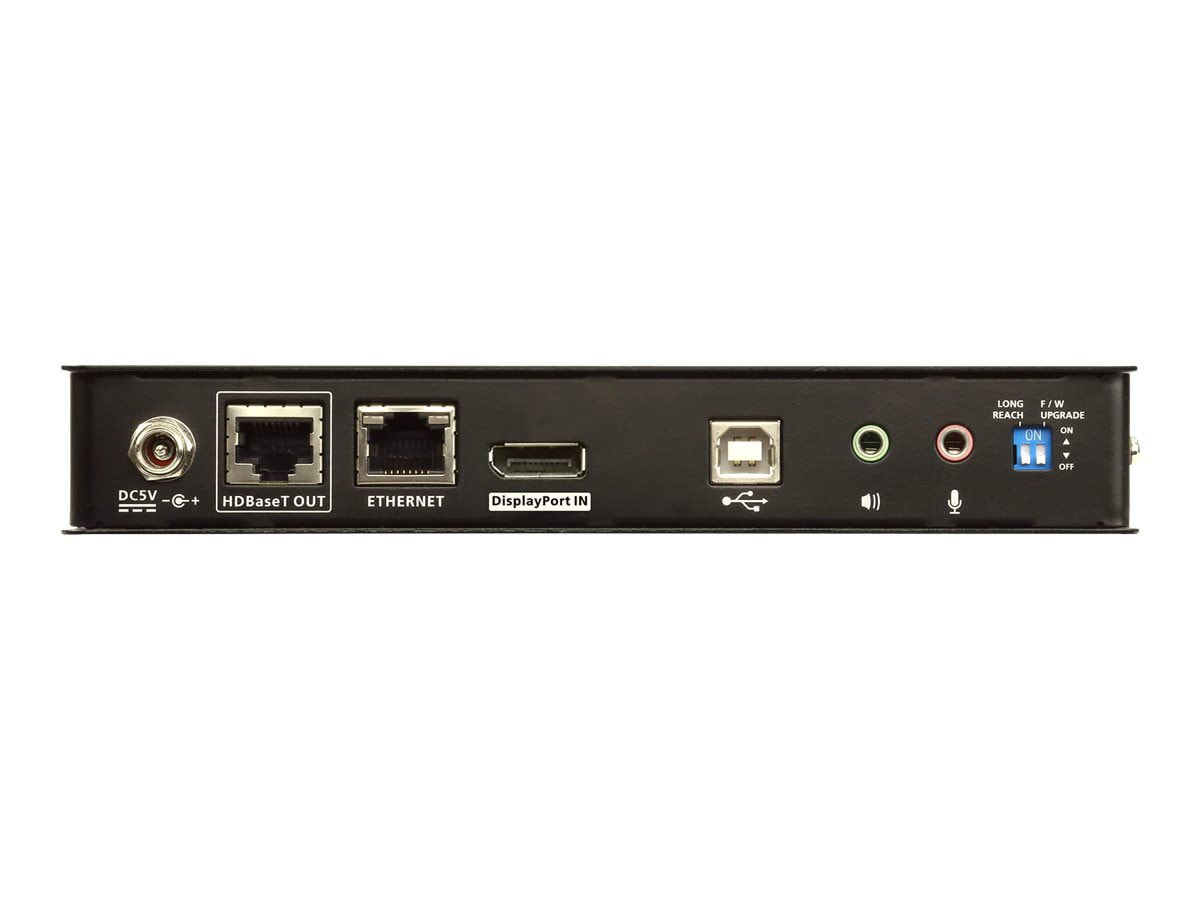

1 x audio (input) - mini jack, 1 x audio (output) - mini jack, 1 x DisplayPort (local unit), 1 x DisplayPort (remote unit), 1 x Ethernet (local unit) - RJ-45, 1 x Ethernet (remote unit) - RJ-45, 1 x RS-232 - DB-9, 3 x USB 2.0 - Type A
KVP Max Resolution
4096 x 2160 / 3840 x 2160
Power Supplies Installed
2
Power Supplies Supported
2
KVM V-Sync Rate At Max Resolution
60 Hz
Max Operating Temperature
104 degree Fahrenheit
Min Operating Temperature
32 degree Fahrenheit
Operating Humidity
0 - 80% (non-condensing)
Device Type
External power adapter
Keyboard
USB
Mounting Kit
Included
Packaged Quantity
1
Cables
DisplayPort cable, Microphone cable, Speaker cable, USB-A to USB-B cable
Height
1.1 inch
Width
4.8 inch
Depth
7.2 inch
Color Category
Black
Compliant Standards
RoHS
