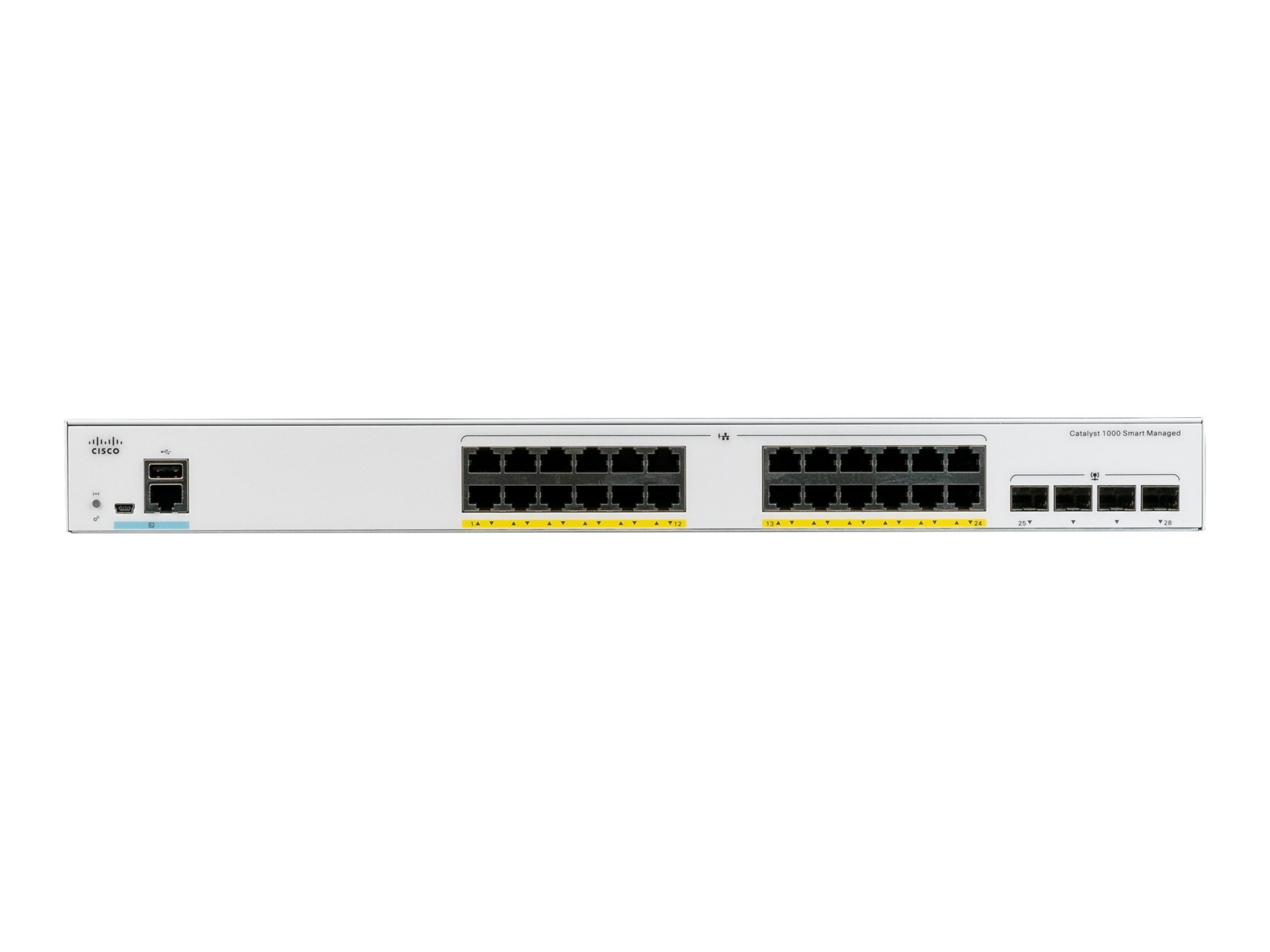

Tech specs
Brand
Cisco
Product Line
Cisco Catalyst
Model
1000-24P-4G-L
Manufacturer
Cisco Systems
Clock Speed
800 megahertz
Processor Brand
ARM
Flash Memory Installed
256 megabyte
RAM Installed
512 megabyte
Compliant Standards
Bluetooth 4.0, IEEE 802.1ab (LLDP), IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Features
802.1x authentication, Access Control List (ACL) support, ARP support, Authentication, Authorization and Accounting (AAA), Auto-uplink (auto MDI/MDI-X), BOOTP support, BPDU Guard, Broadcast Storm Control, Class of Service (CoS), DHCP snooping, DiffServ Code Point (DSCP) support, Dying Gasp support, Dynamic Trunking Protocol (DTP) support, Energy Efficient Ethernet, Fanless, IGMP filtering, Intrusion Detection System (IDS), IP source guard, LACP support, LLDP support, Loopback detection, MAC Access Bypass (MAB), MAC Address Notification, Management Information Base (MIB), Multicast Storm Control, Network Edge Access Topology (NEAT), Port Aggregation Protocol (PAgP) support, Proxy ARP, Quality of Service (QoS), Rapid Per-VLAN Spanning Tree Plus (PVRST+), sFlow, Shaped Round Robin (SRR), SmartPort technology, Spanning-tree Root Guard (STRG), Switched Port Analyzer (SPAN), Unicast Storm Control, Uni-Directional Link Detection (UDLD), User Datagram Protocol (UDP), VLAN Trunking Protocol (VTP), Weighted Tail Drop (WTD)
Form Factor (Hubs & Switches)
Rack-mountable
Jumbo Frame Support
10240 bytes
Manageable
Yes
PoE Budget
195 watt
Ports
24
Power Over Ethernet (PoE)
PoE+
Product Type
Switch
Remote Management
CLI, DHCP, HTTP, ICMP, NTP, RADIUS, RMON 1, RMON 2, RSTP, SNMP 1, SNMP 2c, SNMP 3, SSH, SSH-2, TACACS+, Telnet, TFTP
Routing Protocol
IGMP, MLD, MLDv2, MSTP, RSTP, STP
Status Indicators
Status
Subcategory
Network hubs and switches
Switching Type
Gigabit Ethernet
Interface Provided
1 x management RJ-45, 1 x mini-USB Type B, 1 x USB Type A, 24 x 1000Base-T RJ-45 PoE+ - 15 W, 4 x 1000Base-X SFP uplink
Port Quantity
24
Port Type
10/100/1000 (PoE+)
Ports Type (2nd)
Gigabit SFP (uplink)
Frequency
50 - 60 hertz
Power Supplies Installed
1
Humidity Range Storage
5 - 95%
Max Operating Temperature
122 degree Fahrenheit
Max Storage Temperature
158 degree Fahrenheit
Min Operating Temperature
23 degree Fahrenheit
Min Storage Temperature
-13 degree Fahrenheit
MTBF
2,026,793 Hours
Operating Humidity
5 - 90%
Authentication Method
Kerberos, RADIUS, Secure Shell (SSH), Secure Shell v.2 (SSH2), TACACS+
Capacity
Active VLANs: 256, IPv4 routes (Multicast): 1024, IPv4 routes (static): 16, IPv4 unicast direct routes: 542, IPv4 unicast indirect routes: 256, IPv4/MAC security ACEs: 600, IPv6 groups (Multicast): 1024, IPv6 routes (static): 16, IPv6 security ACEs: 600, IPv6 unicast direct routes: 414, IPv6 unicast indirect routes: 128, MTU-L3 packet: 9198 byte, SPAN sessions: 4, STP instances: 64, Unicast MAC addresses: 15360, VLAN IDs: 4094
Device Type
Internal power supply
Packaged Quantity
1
Performance
Forwarding bandwidth: 28 Gbps, Forwarding rate (64‑byte L3 packets): 41.67 Mpps, Switching bandwidth: 56 Gbps
Ports (2nd) Quantity
4
Height
1.7 inch
Weight
7.78 lbs
Width
17.5 inch
Depth
11.8 inch
Color Category
Gray
Compliant Standards
AS/NZS 60950-1, AS/NZS CISPR22 Class A, CAN/CSA-C22.2 No. 60950-1-07 Second Edition, CISPR 22 Class A, CISPR 24, CNS 13438 Class A, Directive 2011/65/EU, EN 300 386, EN 55022 Class A, EN 60950-1 Second Edition, EN 61000-3-2, EN 61000-3-3, EN 61000-4-5, EN55024, FCC CFR47 Part 15 A, ICES-003 Class A, IEC 60950-1 Second Edition, KN22 Class A, KN24, RoHS, UL 60950-1 Second Edition, VCCI Class A
ENERGY STAR Certified
No
EPEAT Compliant
No
TCO Certified
No
Service & Support Details
Limited warranty - replacement - lifetime - response time: next business day, Technical support - consulting - 90 days
Limited Warranty
Limited Lifetime
