Tech specs
Brand
Cisco
Product Line
Cisco Catalyst
Model
9500
Edition
Network Advantage
Manufacturer
Cisco Systems
Clock Speed
2.4 GHZ
Processors Installed
1
Flash Memory Installed
16 GB
RAM Installed
16 GB
Advanced Switching
Layer 3
Compliant Standards
IEEE 802.1ae, IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3u, IEEE 802.3x
Features
Access Control List (ACL) support, Class-Based Weighted Fair Queuing (CBWFQ), CoAP support, DHCP support, Ethernet over MPLS (EoMPLS), Flexible NetFlow (FNF), Hierarchical Virtual Private LAN Service (H-VPLS), Hot Standby Router Protocol (HSRP) support, Integrated Wireshark, Layer 3 VPN (L3VPN) support, MACsec support, Maximum Likelihood Demodulation (MLD), MPLS support, Multicast Source Discovery Protocol (MSDP), NAT support, Non-Stop Forwarding (NSF), Non-Stop Routing (NSR), PAT support, Private VLAN, Quality of Service (QoS), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Remote Switch Port Analyzer (RSPAN), Spanning Tree Protocol (STP) support, Switched Port Analyzer (SPAN), Trunking, Virtual Route Redundancy Protocol (VRRP) support, Virtual Routing and Forwarding (VRF), VLAN Double Tagging (Q-in-Q), Weighted Random Early Detection (WRED)
Form Factor (Hubs & Switches)
Rack-mountable
Jumbo Frame Support
9198 bytes
MAC Address Table Size
64K entries
Manageable
Yes
Ports
16

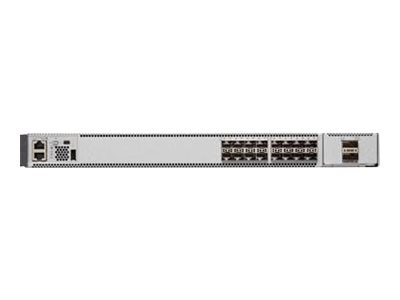

Product Type
Switch
Remote Management
NETCONF, RESTCONF, RMON 1, RMON 2, SNMP, SNMP 1, SNMP 3, TFTP
Routing Protocol
IGMP, OSPF, PIM-SM, PIM-SSM, Policy-based routing (PBR), RIP-1, RIP-2, RIPng, VRRP
Stackable
Stackable
Status Indicators
Status
Subcategory
Network hubs and switches
Switching Type
10 Gigabit Ethernet
Interface Provided
16 x 10Gbit LAN RJ-45, 2 x 10GBase-X SFP+
Port Quantity
16
Port Type
10 Gigabit Ethernet
Ports Type (2nd)
10 Gigabit SFP+
Features
Front-to-rear airflow
Frequency
50 - 60 hertz
Hot-Plug
Hot-plug
Power Provided
950 watt
Power Supplies Installed
2
Power Supplies Supported
2
Redundant Power Supply
Yes
Software Type
Cisco IOS Universal
Built-in Devices
RFID tag
Encryption
256-bit AES
Humidity Range Storage
5 - 95% (non-condensing)
Max Operating Temperature
104 degree Fahrenheit
Max Storage Temperature
149 degree Fahrenheit
Min Operating Temperature
32 degree Fahrenheit
Min Storage Temperature
-4 degree Fahrenheit
MTBF
315,790 Hours
Operating Humidity
5 - 90% (non-condensing)
Capacity
FNF entries: 512000, Host IPv4 routes: 80000, Host IPv6 routes: 40000, Indirect IPv4 routes: 64000, Indirect IPv6 routes: 32000, Multicast scale: 16000, QoS ACL scale: 18000, Security ACL scale: 18000, Switched virtual interfaces (SVIs): 4000, VLAN IDs: 4000
Device Type
Internal power supply
Packaged Quantity
1
Performance
Forwarding rate: up to 360 Mpps, Switching capacity (full duplex): up to 480 Gbps
Ports (2nd) Quantity
2
Height
21.5 inch
Height (Rack Units)
1
Weight
23.59 lbs
Width
1.7 inch
Depth
17.5 inch
Color Category
Gray
Compliant Standards
AS/NZS 60950-1, AS/NZS CISPR22:2004 Class A, CAN/CSA-C22.2 No. 60950-1, CISPR 22 Class A, CISPR 24, CNS 13438 Class A, EN 300 386, EN 55022 Class A, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN50082-1, EN55024, FCC CFR47 Part 15 A, GB 4943, ICES-003 Class A, IEC 60950-1, KN 61000-4, KN22 Class A, KN24, UL 60950-1, VCCI Class A
ENERGY STAR Certified
No
EPEAT Compliant
No
TCO Certified
No
Service & Support Details
Limited warranty - replacement - lifetime - response time: next business day, Technical support - consulting - 90 days
Limited Warranty
Lifetime Limited
