Tech specs
Brand
POS-X
Product Line
POS-X
Model

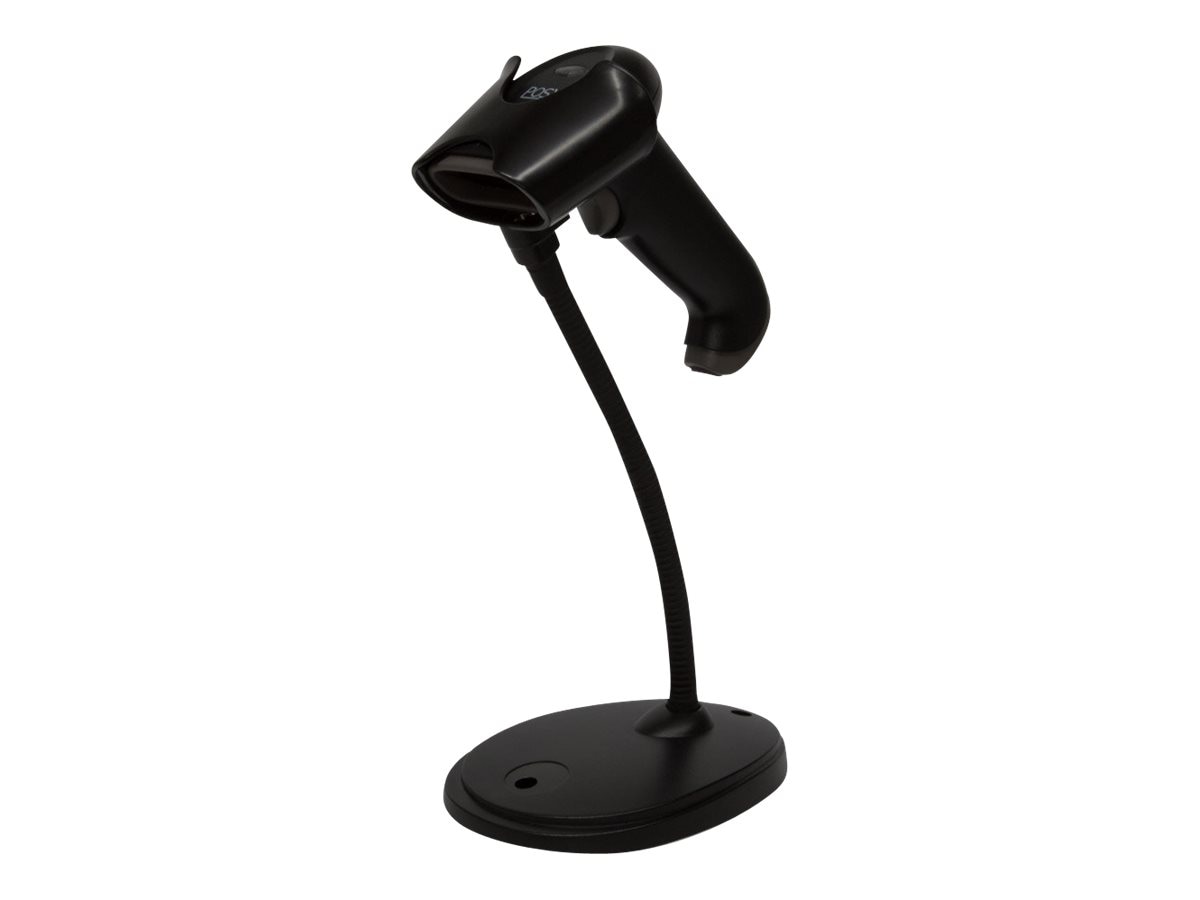

EVO 2D
Manufacturer
POS-X
Connectivity Technology
Wired
Interface Required
1 x USB - Type A
Barcode Symbology Supported
Aztec code, China Han Xin Code, China Post, Codabar, Codablock A, Codablock F, Code 128, Code 39, Code 39 Full ASCII, Code 93, Data Matrix, EAN/JAN-13, EAN/JAN-8, EAN-13, GS1 DataBar Composites, GS1 DataBar Expanded, GS1 DataBar Limited, GS1 DataBar Omnidirectional, GS1-128, IATA 2 of 5, Industrial 2 of 5, Interleaved 2 of 5, ISBT 128, Korea Post, MacroPDF417, Matrix 2 of 5, MicroPDF417, MSI, PDF417, QR code, UPC-A, UPC-E0, UPC-E1
Scan Mode
Single-pass
Scan Rate
270 scan / sec
Electric Current Required
400 mA
Software Type
Honeywell EasyDLA
Drop Specification
3.3 ft to concrete
Form Factor
Handheld
Image Sensor Type
2D imager
Interface
USB
Light Source Wave Length
617 nm
Max Operating Temperature
104 degree Fahrenheit
Max Scan Field
14.02 inch
Min Operating Temperature
32 degree Fahrenheit
Min Scan Field
0.91 inch
Minimum Bar Width
5 milli-inch
Operating Humidity
5 - 95% (non-condensing)
Print Contrast Signal (PCS)
35%
Skew (Degrees)
60
Scanner Functionality
Barcode scanner
Kit
Stand Kit
Max Coverage Angle
70
OK Notification
LED indicator
Packaged Quantity
1
Service Activation
No
Cables
1 x USB cable - external - 4.5 ft
Height
3.7 inch
Weight
4.13 ounce
Width
2.8 inch
Depth
6.5 inch
Color
Black
Color Category
Black, Gray
Compliant Standards
CSA, GOST-R, IP40, NOM
ENERGY STAR Certified
No
EPEAT Compliant
No
TCO Certified
No
Service & Support Details
Limited warranty - 5 years
Limited Warranty
5 Year
