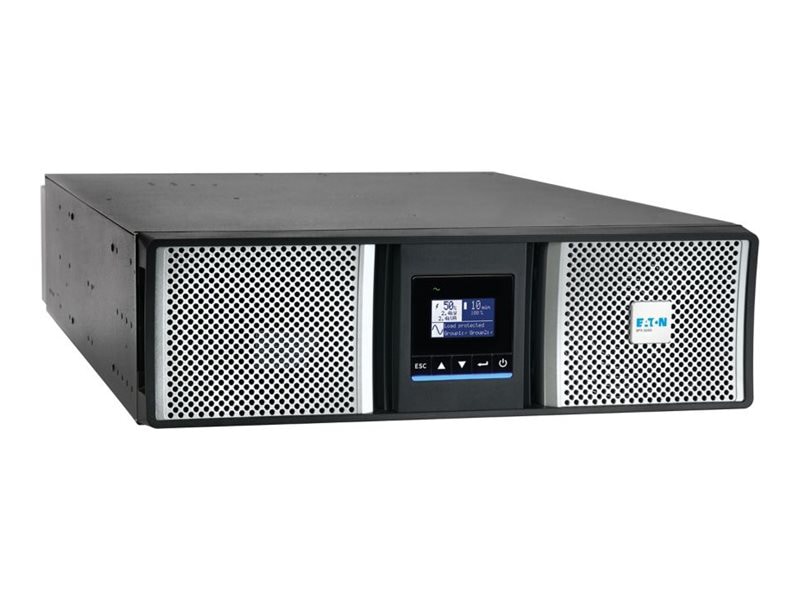

Eaton 9PX Online UPS 6000VA 5400W 208V 3U Rack/Tower Network Card Included

$8,323.00
$5,366.54
Mfg # 9PX6K CDW # 2872396

Quick tech specs

  • Online double-conversion sine wave uninterruptible power supply w/graphical LCD interface provides battery backup and voltage regulation
  • Hardwired/ 2 L6-20R/ 2 L6-30R recept/ L6-30P input
  • 4-post rail kit included
  • 8 min 1/2 load; 3 min full load (optional 9PXEBM180RT battery packs available)
  • Included NETWORK-M2 network card meets UL/IEC cybersecurity standards
  • ABM technology for 50% longer battery service life
  • Ideal for servers/network/telecom equipment
  • 3 Year Eaton Warranty
View All View More

Know your gear

6kVA/5.4kW/208V Battery Backup for IT Installations and Edge Networks

This 9PX rack-mount online double-conversion UPS system provides reliable battery backup and AC power protection against blackouts, brownouts, surges and line noise that can damage valuable IT equipment or destroy data. The 9PX6K is superlative power management for education, commercial, financial or healthcare networking components, including Cisco switches and servers.
Expandable Internal Battery Backup Keeps You Operational Through Power Outages

The field-replaceable, hot-swappable valve regulated lead acid (VRLA) battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Exclusive ABM technology increases battery life by 50 percent and closely monitors battery health to provide advanced notice when batteries need replacing. You can also connect up to four extended battery modules (9PXEBM180RT, sold separately) for hours of extended runtime.
Included Gigabit Network Interface Offers 24/7 Remote Access

The NETWORK-M2 Gigabit network card enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. UPS firmware can also be flashed remotely through the NETWORK-M2 without dropping the load, so you don't have to plan for downtime. The card meets both UL 2900-1 and IEC 62443-4-2 standards for cybersecurity, which were developed to address the vulnerability of connected devices to known malware/exploits and to protect business from these risks. The optional Environmental Monitoring Probe Gen 2 (EMPDT1H1C2, sold separately) provides a variety of environmental monitoring capabilities, including temperature and humidity conditions.
NEMA Outlets Protect Your Connected Components

Two L6-20R and two L6-30R managed outlets provide connected equipment with pure sine wave AC output and allow you to monitor power consumption down to the outlet group level. Power provided by these outlets is filtered to protect connected equipment against damaging surges and line noise. The 9PX6K also supports hardwired output.
Rotating LCD Interface Keeps You Informed at a Glance

The intuitive front-panel LCD provides control settings and critical information to help diagnose any issues. The interface rotates to accommodate both rack-mount and tower configurations, and it tilts up to 45 degrees for more comfortable viewing.
Advanced Communications Ports Allow for Automatic Saves and Shutdowns

RS-232 and USB ports connect to a serial-enabled device for a variety of communication options (cables are included). A dry-contact relay port can be programmed through the LCD to provide reliable communications to automation and industrial components. The RPO/ROO connectors permit emergency shutdown or remote restart of all connected equipment.
Versatile Installation Options

You can mount the 9PX6K in just 3U of space in an EIA-standard 19-inch rack using the included 4-post rail kit or an optional 2-post rail kit (RK2PC, sold separately). You can also adapt it for tower installation using the included support stands. The six-foot power cord with NEMA L6-30P plug connects to a compatible AC outlet. A cable gland is included for alternate hardwire input.

$8,323.00
$5,366.54
Advertised Price
Availability: 50 units In Stock
Add to Compare

Enhance your purchase

Better Together

Current Item
Eaton 9PX Online UPS 6000VA 5400W 208V 3U Rack/Tower Network Card Included

This Item: Eaton 9PX Online UPS 6000VA 5400W 208V 3U Rack/Tower Network Card Included

$5,366.54

Total Price:
Eaton 9PX 9PX6K - UPS - 5.4 kW - 6000 VA is rated4.67 out of5 by3.
Rated 5 out of 5 by from null9PX 8K unit is very nice. Well designed. Removable battery packs from EBM made it much easier to move and install. One funny thing. The wiring harness between the Transformer and the control unit change the orientation opposite which screwed up the electricians (caused us a couple hours of troubleshooting.) Even thought they are labeled, the area is small and once the shroud goes on it's almost impossible to see. Would be nice if they wiring was uniform between the units for conformity. I like the environmental add on, but seems impossible to see the Temperature and Humidity from the Web Interface. The only way I can find these are from the emails I get (either scheduled or from alarms.) Would be nice to have Environment output in the same place as the other critical details.
Date published: 2014-09-22T00:00:00-04:00
Rated 5 out of 5 by from nullWe've been using these in our server racks (we're in a SME). Lots of available power, great management (the Intelligent Power Manager), the batteries have been working overtime every now and then with the weather but they've done their deed until the generators kick in, giving us the 4-5 nines that we need. They're expensive, but that's the cost of doing business.
Date published: 2015-06-12T00:00:00-04:00
Rated 5 out of 5 by from Absolutely love this productI would buy this product over and over again if I needed to, but it's so reliable, I don't believe I will have to!
Date published: 2019-03-20T00:00:00-04:00
