Tech specs
Brand
i-Pro
Product Line
i-PRO U-Series
Model

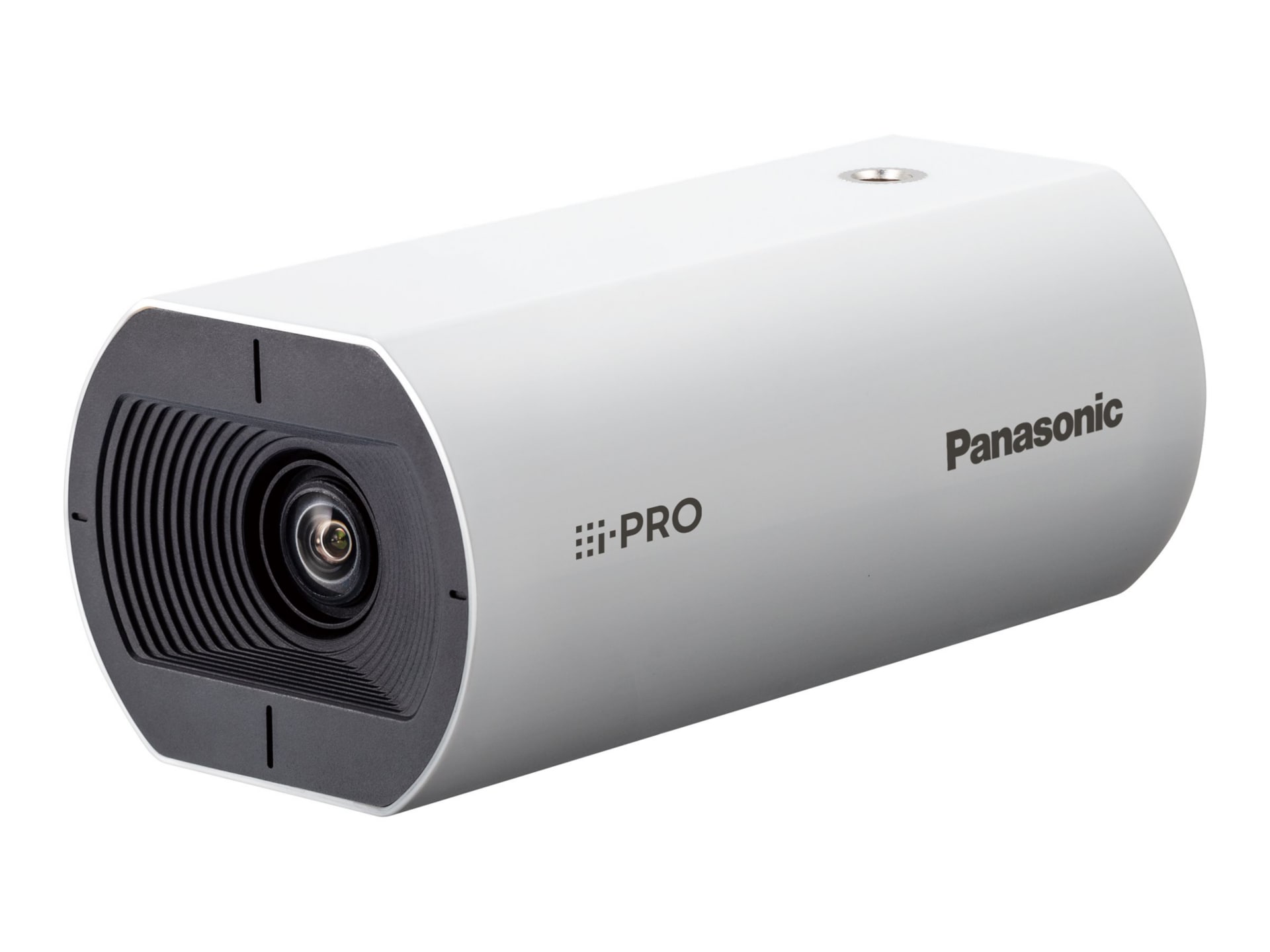

WV-U1142A
Manufacturer
i-PRO Americas
Memory Cards Supported
microSD Card, microSDHC Card, microSDXC Card
Network Interface
Ethernet 10Base-T/100Base-TX
Protocols
ARP, DDNS, DHCP, DHCPv6, DNS, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, LLDP, MLD, MQTT, NTP, RTCP, RTP, RTSP, SMTP, SNMP 1, SNMP 2, SNMP 3, SSL, TCP/IP, TLS, UDP/IP, UPnP
Connectivity Technology
Wired
Ports
LAN - RJ-45
Image Sensor Size
1/2.7"
Image Sensor Type
CMOS
Camera Mechanical Design
Fixed
Digital Video Capture Resolution
1920 x 1080, 2560 x 1440, 2688 x 1520, 320 x 180, 640 x 360
Digital Zoom
4
Max Frame Rate
30 frames per second
Max Video Resolution
2688 x 1520
Shutter Speed (Max)
1/10000 second (time unit)
Shutter Speed (Min)
16/30 second (time unit)
Camera Type
Network surveillance camera
Night Vision
Yes
Low Voltage Power
DC 48 V / PoE
Power Consumption Operational
4.8 watt
Rated Current
100 milliampere
Angular Field of View (H, Max, Degree)
103
Angular Field of View (H, Min, Degree)
44
Angular Field of View (V, Max, Degree)
57
Angular Field of View (V, Min, Degree)
25
Focal Length Control
Motorized zoom
Focus Modes
Motorized
Form Factor
Box
Indoor/Outdoor
Indoor
Lens Aperture
F/2.0-3.0
Max Focal Length
7.3 millimetre
Max Operating Temperature
122 degree Fahrenheit
Min Focal Length
2.9 millimetre
Min Focus Distance
3.3 ft
Min Operating Temperature
14 degree Fahrenheit
Minimum Illumination
0.0075 lux - B&W - F2.0 - 50 IRE - shutter 16/30 sec, 0.019 lux - color - F2.0 - 50 IRE - shutter 16/30 sec, 0.12 lux - B&W - F2.0 - 50 IRE - shutter 1/30 sec, 0.3 lux - color - F2.0 - 50 IRE - shutter 1/30 sec
Operating Humidity
10 - 90% (non-condensing)
Optical Zoom
2.5
Sensor Size (metric)
9.4 mm (1/2.7")
Total Pixels
4,000,000 pixels
Video Formats
H.264, H.265, MJPEG
Video Input
Color
Features
180° image rotation, 270° image rotation, 8 privacy zones, 90° image rotation, Automatic Tracing White (ATW), Automatic White Balance Control (AWC), Backlight Compensation (BLC), Constant Bit Rate (CBR), Corridor mode, Device Certificate GlobalSign pre-installed, Digital Noise Reduction, E-mail alerts, Fog compensation, Group of Pictures (GOP), Highlight Compensation (HLC), Host authentication, Intelligent Auto (iA), Multicast Streaming, ONVIF (Profile G) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Scene Change Detection (SCD), Super Dynamic technology, Unicast Streaming, User authentication, Variable Bit Rate (VBR)
Packaged Quantity
1
Height
1.9 inch
Weight
7.05 ounce
Width
2.3 inch
Depth
4.6 inch
Color
White
Color Category
White
Compliant Standards
CSA C22.2 No. 60950-1, EN55032 Class B, EN55035, FCC Part 15 A, ICES-003 Class A, IEC 60950-1, IEEE 802.3af, NDAA, UL 60950-1
Service & Support Details
Limited warranty - 7 years
Limited Warranty
7 Year
