Tech specs
Brand
Lenovo

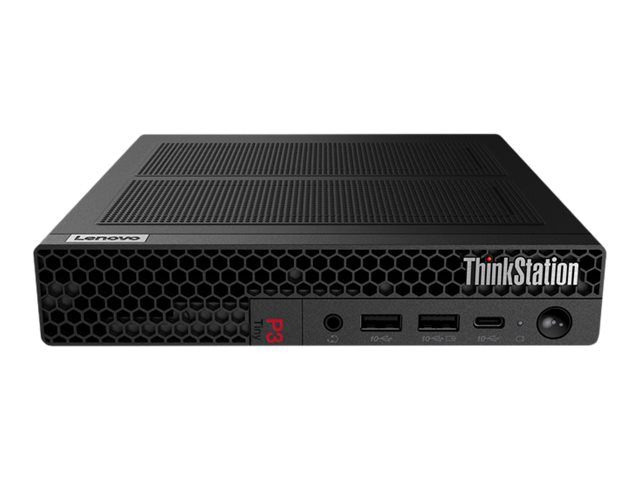

Product Line
Lenovo ThinkStation P3
Model
30H0
Manufacturer
Lenovo Topseller Desktops
Clock Speed
2.1 GHZ
Cores
20-core
Max Turbo Speed
5.4 GHZ
Platform Technology
Intel vPro Enterprise
Processor Brand
Intel
Processor Generation
14
Processor Number
I7-14700
Processor Socket
FCLGA1700 Socket
Processor Type
Core i7
Processors Installed
1
Total Processor Supported
1
Available Memory Slots
1
Cache Memory Installed
33 megabyte
Configuration Features
1 x 16 GB
Data Integrity Check
Non-ECC
Features
Dual channel memory architecture
Max Memory Supported
64 GB
Memory Slots
2
Memory Speed
5600 megahertz
Memory Technology
DDR5 SDRAM, GDDR6 SDRAM
RAM Installed
16 GB
Rated Memory Speed
2800 megahertz
Drive Interface
PCI Express 4.0 x4
Drive Type
No optical drive
Hard Drive Capacity
512 GB
Hard Drive Features
NVM Express (NVMe), Performance, TCG Opal Encryption
Installed Quantity
1
Interface Class
PCI Express
Optical Drive Type
No optical drive, None
Optical Drive Type (2nd)
None
RAID Levels
RAID 0, RAID 1
SSD Form Factor
M.2 2280
Storage (2nd)
None
Storage (3rd)
None
Storage (4th)
None
Storage Controller Type
RAID
Type
None
Hard Drive Interface Type
SSD
Display Technology
None.
Graphics Controller Model
NVIDIA T1000 / Intel UHD Graphics 770
Graphics Processor Series
Intel UHD Graphics, NVIDIA RTX
Multi-GPU Configuration
1 single GPU card / integrated GPU
Privacy Technology
None
Touchscreen
No
Video Interfaces
DisplayPort
Audio Input Type
None
Compliant Standards
High Definition Audio
Installed Size
8 GB
Interface Provided
1 x DisplayPort 1.4, 1 x HDMI, 1 x headphones/microphone (1 in front), 1 x LAN (Gigabit Ethernet), 1 x USB 3.2 Gen 1 (1 rear), 1 x USB 3.2 Gen 1 (1 rear) (supports SmartPower On), 1 x USB 3.2 Gen 2 (1 in front) (Always On), 1 x USB-C 3.2 Gen 2 (1 in front), 3 x USB 3.2 Gen 2 (1 front, 2 rear), 4 x Mini DisplayPort 1.4
Data Link Protocols
Bluetooth 5.1, Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet Controllers
Intel I219-LM
Features
Dual stream (2x2), Intel Active Management Technology (AMT) 16, Wake On LAN (WOL)
Host Interface
M.2 Card
Wireless LAN
802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.1
Wireless LAN Supported
Yes
Wireless NIC
Intel Wi-Fi 6E AX 211
Chipset Type
Intel Q670
Efficiency
90%
Embedded Security
Discrete Trusted Platform Module (TPM 2.0) Security Chip
Form Factor
Ultra Small Form Factor
Form Factor (RAM)
SO-DIMM 262-pin
Storage Controller Interface
PCI Express (NVMe)
Input Device Type
Keyboard, Mouse
Interface
USB
Max Operating Temperature
95 degree Fahrenheit
Min Operating Temperature
41 degree Fahrenheit
Mouse Name
Lenovo Calliope Mouse
Operating Humidity
20 - 80%
Controllers Included
1
Country
United States
Printer Product Type
None
Keyboard Localization
English
Keyboard Name
Lenovo Traditional Keyboard
Keys Layout
QWERTY
Localization
English
Manufacturer Form Factor
Tiny
Packaged Quantity
1
Product Type
Workstation
Security Slot Type
Kensington security slot
Service Activation
No
Theft Protection
Chassis intrusion switch, Security lock slot (cable lock sold separately), Tool-less chassis access
Slots
1 (total) / 0 (free) x M.2 Card (for WLAN), 1 (total) / 0 (free) x PCIe 4.0 x8 - low-profile, 2 (total) / 1 (free) x M.2 Card (for SSD)
Bundled Services
3 Years Lenovo Premier Support
Operating System
Windows 11 Pro
Operating System Edition
Windows 11 Pro
Operating System Language
English
Operating System Platform
Windows
Frequency
50/60 hertz
Power Device Type
Power adapter
Power Provided
300 watt
Required Voltage
AC 100-240 volt
Included Accessories
VESA mounting kit
Color
Black
Color Category
Black
Height
1.5 inch
Weight
3.09 lbs
Width
7 inch
Depth
7.2 inch
Compliant Standards
Energy-Related Products (ErP) Lot 3, FIPS 140-2, RoHS, TCG Certified, TCO Certified 9.0
ENERGY STAR Certified
Yes
Energy Star Version
8.0
Environmental Certification
TCO Certified Desktops 9
EPEAT Compliant
Yes
EPEAT Level
EPEAT Gold
TCO Certified
No
On-Site Warranty
On-site
Service & Support Details
Base warranty - 3 years - on-site, Extended warranty - 3 years - on-site - response time: next business day
Limited Warranty
3 Year
