Panorama Antennas L[X]M[X]M8[X]-6-60 | Megalodon 8x 4G/5G Low Profile Antenna
![Panorama Antennas L[X]M[X]M8[X]-6-60 | Megalodon 8x 4G/5G Low Profile Antenna](https://webobjects2.cdw.com/is/image/CDW/8109334?$product-detail$)
Quick tech specs
- Delivers?enhanced performance at 617 MHz to 960 MHz frequency
- Operates at 30 dB gain
- Antenna can be mounted as panel mount
- Get improved cellular network signal from further away with this antenna
- Provides ease of management and installation thanks to its omni-direction feature
Know your gear
The industry leading Megalodon range has been developed to provide 2x 4×4 MiMo 4G/5G antenna systems covering 617-960/1427-6000MHz within a robust low profile package. Covering global cellular bands for future-proof performance, the antenna provides effective functionality for 2x 4G Cat 18/20 and/or 5G modems. This can be combined with a number of other functions including single/dual band GPS/GNSS and up to 8×8 MiMo WiFi elements covering 2.4-7.2GHz (WiFi 6e/7).
The antenna is designed to be panel mounted and can be fitted on a conductive or non-conductive panel. Supplied with integrated flame retardant low-loss CS30 cables (Compliant to UN ECE R118) and a halogen free, flame retardant radome, the antenna is suitable for many environments and applications, including public safety and transportation.
The LGM variants have an integrated GPS/GNSS module supporting either L1 only or L1/L5 frequencies. This GPS module features advanced filtering for LTE B13/14 designed to minimise potential in band interference.
The antenna is available with a black or white radome which meets IK10 for vandal resistance and IP69K for Ingress protection.

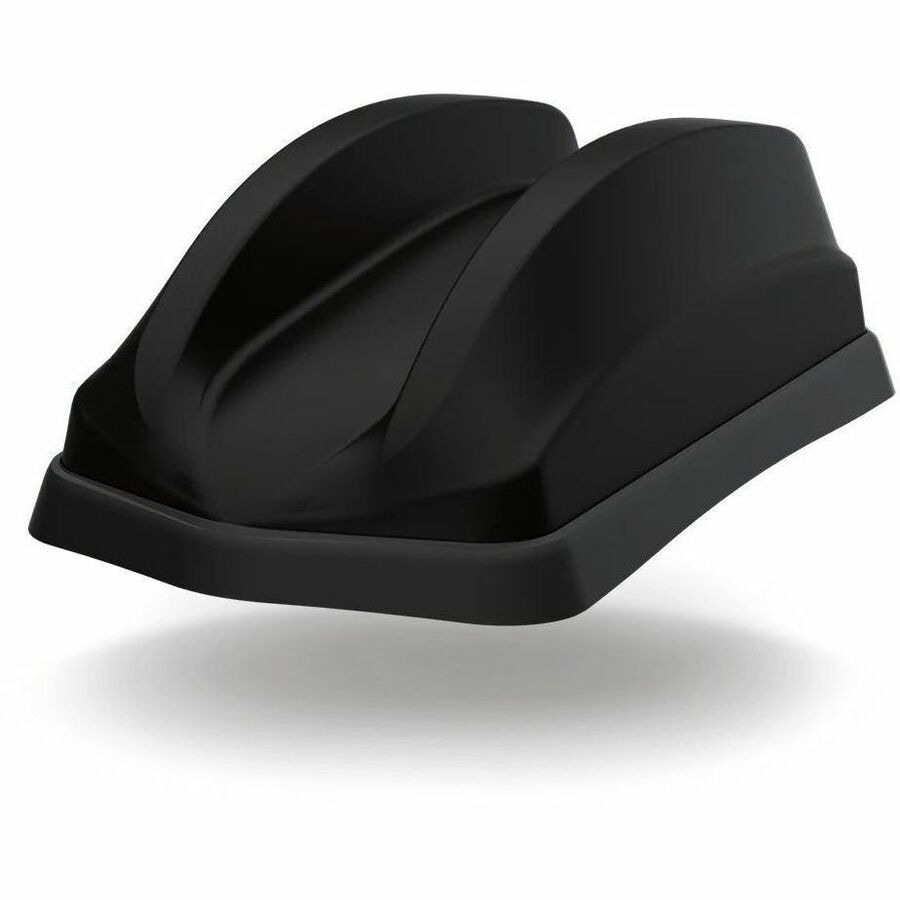

![Panorama Antennas GPS[X]D4[X]-6-60 | 4×4 MiMo 4G/5G Sharkfin Antenna](https://webobjects2.cdw.com/is/image/CDW/8344577?$product_search_result$)
