Tech specs
Brand
SonicWALL
Product Line
SonicWall
Model

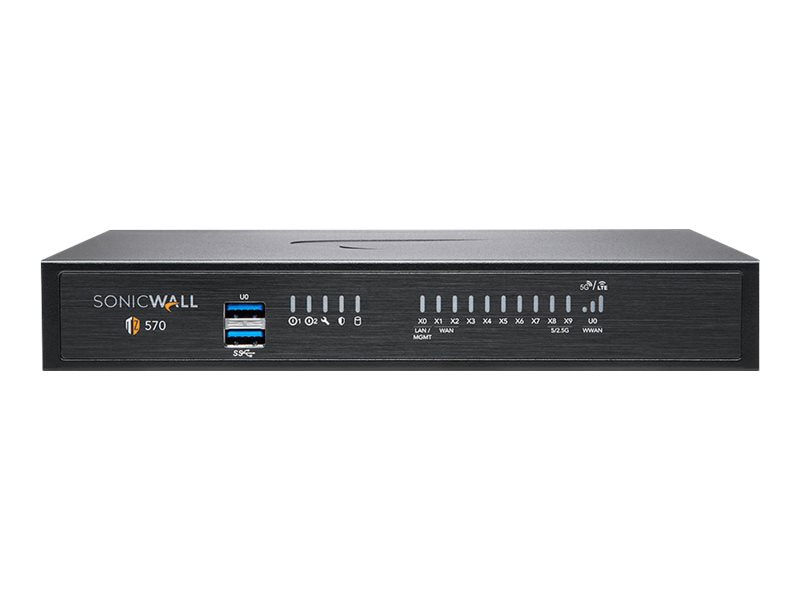

TZ570
Edition
Advanced Edition
Manufacturer
SonicWALL
Connectivity Technology
Wired
Data Link Protocols
5 Gigabit Ethernet, Gigabit Ethernet
Features
3G/4G USB Dongle Support, Anti-spam protection, Antivirus analysis, Bandwidth control, Common Access Card (CAC) reader support, Content filtering, DDos attack prevention, Dead Peer Detection (DPD), Deep Packet Inspection (DPI), DHCP relay, DHCP server, DoS attack prevention, Firewall protection, IPSec NAT-Traversal (NAT-T), IPv4 support, IPv6 support, Jumbo Frames support, NAT support, NetFlow, PAT support, Port mirroring, Quality of Service (QoS), SD-WAN support, Single Sign-On (SSO) support, Stateful Packet Inspection (SPI), VLAN support, VLAN trunking, VPN support
Form Factor
Desktop
Network Standard
DHCP, ICMP/IP, IPSec, L2TP, PPPoE, PPTP, TCP/IP, UDP/IP
Product Type
Security appliance
Remote Management
CLI, HTTP, HTTPS, SNMP 2, SNMP 3, SSH
Routing Protocol
BGP, OSPF, Policy-based routing (PBR), RIP-1, RIP-2, Static IP routing
Status Indicators
Link/activity, Power, Secure, SSD activity, Test mode
Interface Provided
1 x console - micro-USB, 1 x console - RJ-45, 2 x 1000Base-T - RJ-45 (WAN), 2 x network - SFP+, 2 x USB 3.0 - Type A, 6 x 1000Base-T - RJ-45
Frequency
50/60 hertz
Power Consumption Operational
13.1 watt
Power Provided
60 watt
Redundant Power Supply
Optional
Operating System Edition
SonicOS 7.0
Software Type
SonicWall Advanced Protection Service Suite (2 years)
Encryption
128-bit AES, 192-bit AES, 256-bit AES, DES, MD5, SHA-1, Triple DES
Max Operating Temperature
104 degree Fahrenheit
Min Operating Temperature
32 degree Fahrenheit
MTBF
26.1 Year
Operating Humidity
5 - 95% (non-condensing)
Authentication Method
LDAP, RADIUS, XAUTH authentication
Capacity
DPI connections: 400000, DPI SSL connections: 50000, IPSec VPN clients: 10 (maximum 500), Manageable access points: 32, Single Sign-On (SSO) users: 2500, SPI connections: 1250000, SSL VPN licenses: 2 (maximum 200), Virtual interfaces (VLANs): 256, VPN tunnels (site-to-site): 200
Device Type
External power adapter
Packaged Quantity
1
Service Activation
No
VoIP
Yes
VoIP Protocols
H.323 v1, H.323 v2, H.323 v3, H.323 v4, H.323 v5, SIP
Network Device
Anti-malware throughput: 2 Gbps, Application throughput: 2.5 Gbps, Connection rate: 16000 connections per second, Firewall throughput: 4 Gbps, IPS throughput: 2.5 Gbps, Threat prevention throughput: 2 Gbps, TLS/SSL inspection and decryption throughput: 750 Mbps, VPN throughput (IPSec): 1.8 Gbps
Height
1.4 inch
Weight
34.21 ounce
Width
8.9 inch
Depth
5.9 inch
Color Category
Black
Compliant Standards
ANATEL, BSMI, CB, Common Criteria, C-Tick, cUL, EMC, FCC Class B certified, FIPS 140-2 Level 2, ICES Class B, ICSA Antivirus, ICSA Firewall certified, KCC, LVD, MSIP, REACH, RoHS, TUV GS, UL, VCCI Class B, WEEE
ENERGY STAR Certified
No
EPEAT Compliant
No
TCO Certified
No
