Quick tech specs
- Extend a network over VDSL2 using UTP/single pair wire, phone line cabling up to 0.6mi (1km); Ethernet Extender is capable of up to 300Mbps (aggregated)
- LEDs for network status including LAN speed/link status/power/remote or master mode
- Works with 3rd party VDSL2 IP DSLAMs in remote mode; 802.1Q VLAN tag transparency preserves VLAN-tagged traffic across the extension
- DIP switch selectable settings (8 profile configs available)
- Wall mounting hardware and two power adapters included
Know your gear

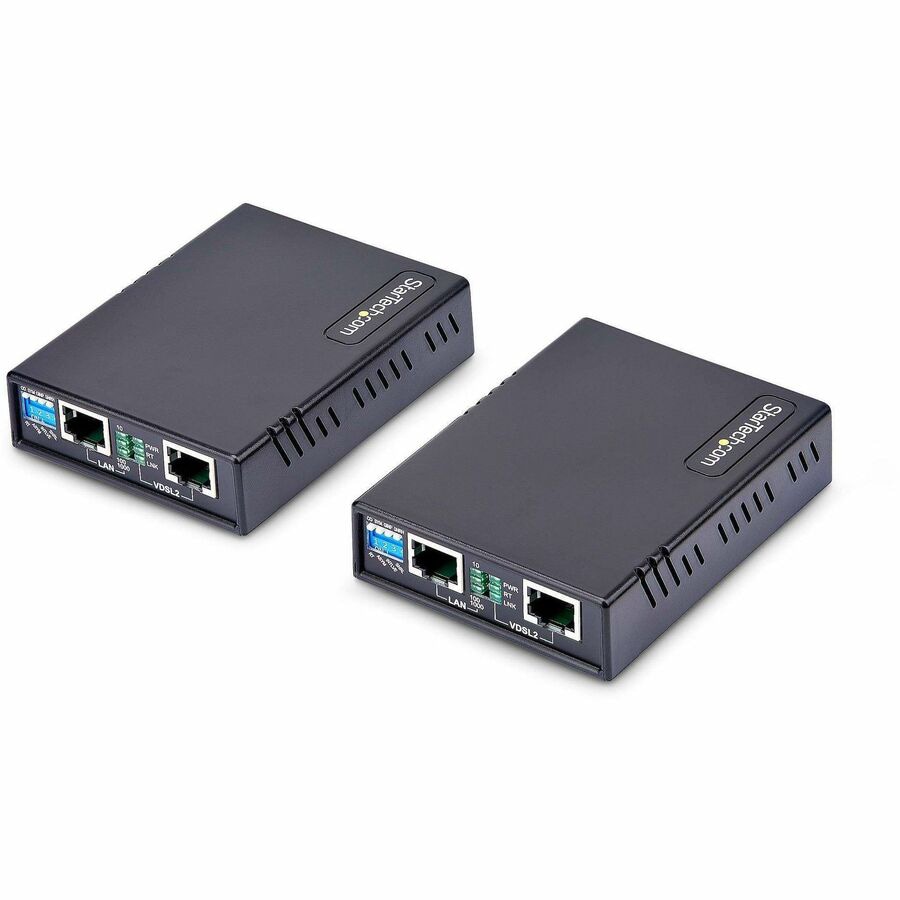

Extend a network over VDSL2, using Cat5e (or better) UTP Cabling or Single-Pair (or better) Telephone Wire at distances up to 0.6mi (1km). Extend Network Connectivity| Extend a network over VDSL2 using UTP, CAT5e/6 or RJ11 cabling over distances up to 0.6mi (1km). Speeds of up to 300 Mbps (aggregated) are available at shorter distances. Supports VDSL2 35b/30a/17a and features ITU-T G.993.5 G.Vectoring and G.INP technologies. Thoughtful Design| The installation can be customized by using DIP switches. Choose between Master or Remote mode, Symmetric or Asymmetric mode, G.INP or Interleave mode, and fine-tune SNR with High and Low options for optimal performance. The Gigabit Ethernet Extender has LEDs that provide a visual indication of network status, including LAN speed, link status, power, and remote/master mode, allowing IT administrators to monitor and assess network connectivity. Versatile Applications| The Long-Range LAN Extender can be mounted on a wall, using the included hardware, or installed on a shelf or other surface. The kit includes two power adapters, one for each VDSL Extender. The extender works with third-party VDSL2 IP DSLAMs in CPE (RT) mode and extends the network for applications such as remote office or branch locations or IP-based video solutions. The 802.1Q VLAN tag transparency preserves VLAN-tagged traffic across the extension.
