Tech specs
Brand
Zebra
Product Line
Zebra
Model

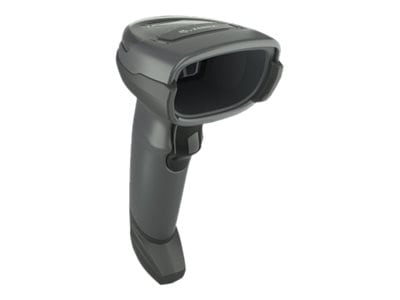

DS4608-HD
Manufacturer
Symbol Technologies
Connectivity Technology
Wired
Interface Required
1 x USB - Type A
Barcode Symbology Supported
Aztec code, Base 32, Codabar, Code 11, Code 128, Code 39, Code 93, Composite, Data Matrix, DotCode, GS1 DataBar, Han Xin, Interleaved 2 of 5, Korean 3 of 5, MaxiCode, Micro QR code, MicroPDF417, MSI-Plessey, NW-7, OCR-A, OCR-B, PDF417, QR code, TLC39, UPC
Scan Mode
Single-pass
Sensor Resolution
1280 x 800
Electric Current Required
150 mA (standby), 340 mA (typical)
Drop Specification
6 ft to concrete
Form Factor
Handheld
Image Sensor Type
2D imager
Interface
USB
Light Source Wave Length
617 nm
Max Operating Temperature
122 degree Fahrenheit
Min Operating Temperature
32 degree Fahrenheit
Minimum Bar Width
3 milli-inch
Operating Humidity
5 - 95% (non-condensing)
Print Contrast Signal (PCS)
15%
Skew (Degrees)
60
Scanner Functionality
Barcode scanner
Features
Checkpoint Electronic Article Surveillance (EAS)
Kit
USB Kit
Max Coverage Angle
60
OK Notification
Beeper, LED indicator
Packaged Quantity
1
TTL Decoding
Decoded
Cables
1 x USB cable - external - 7 ft
Included Accessories
Stand
Height
6.5 inch
Weight
5.71 ounce
Width
2.6 inch
Depth
3.9 inch
Color
Twilight black
Color Category
Black
Compliant Standards
2011/65/EU, CAN/CSA C22.2 No. 60950-1-07, EN 50581:2012, EN 55032 Class B, EN 55035, EN 60601-1-2:2015, EN 60950-1 Second Edition, EN 60950-1:2006+A2:2013, EN 61000-4-2, EN 62368-1:2014, EN 62471:2008, EN55024, FCC CFR47 Part 15 B Class B, ICES-003 issue 6 Class B, IEC 60601-1-2:2014, IEC 60950-1:2005, IEC 62368-1, IEC 62471:2006, IP52
ENERGY STAR Certified
No
EPEAT Compliant
No
TCO Certified
No
Service & Support Details
Limited warranty - 5 years
Limited Warranty
5 Year
