Tech specs
Brand
Cisco
Product Line
Cisco
Manufacturer
Cisco Systems
Cable Type
Ethernet 10GBase-CSR, Ethernet 25GBase-CSR
Compliant Standards
IEEE 802.3by
Connectivity Technology
Wired
Data Link Protocols
10 Gigabit Ethernet, 25 Gigabit Ethernet
Data Transfer Rate
25 GBps
Features
Peach pull tab
Form Factor
Plug-In Module
Max Transfer Distance
1310 ft
Optical Wave Length
840-860 nm
Product Type

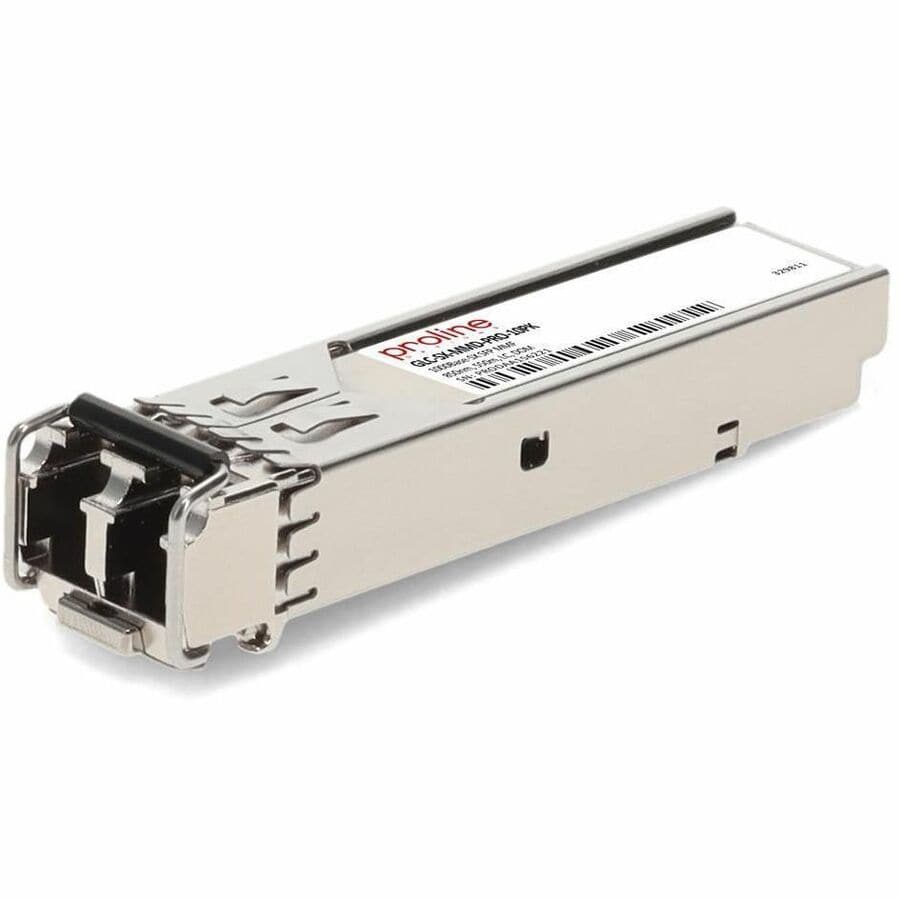

SFP28 transceiver module
Interface Provided
1 x Ethernet 10GBase-CSR/25GBase-CSR - LC/PC multi-mode
Left Connector SD Type
LC/PC multi-mode
Max Operating Temperature
158 degree Fahrenheit
Min Operating Temperature
32 degree Fahrenheit
Packaged Quantity
1
Color Category
Gray
Compliant Standards
OM3, OM4
ENERGY STAR Certified
No
EPEAT Compliant
No
TCO Certified
No
Service & Support Details
Limited warranty - 1 year
Limited Warranty
1 Year
Compatibility Specs
P/N: A9903-8HG-PEC=, A9K-4HG-FLEX-FC=, ASR-9006-MIG-KIT, ASR-9010-MIG-KIT, ASR-9902, ASR-9903, ASR-9904-MIG-KIT, ASR-9906-MIG-KIT, ASR-9910-LS-BUN, ASR-9910-MIG-KIT, ASR-9912-LS-BUN, ASR-9912-MIG-KIT, ASR-9922-LS-BUN, ASR-9922-MIG-KIT, C9200L-24PXG-2Y-1E, C9200L-24PXG-2YA++, C9200L-24PXG-2Y-A=, C9200L-24PXG-2Y-CE, C9200L-24PXG-2Y-E=, C9200L-48PXG-2Y-1E, C9200L-48PXG-2YA++, C9200L-48PXG-2Y-A=, C9200L-48PXG-2YE++, C9200L-48PXG-2Y-E=, C9200-NM-2Y, C9200-NM-2Y=, C9300-24H-10A, C9300-24H-10E, C9300-24H-1A, C9300-24H-1E, C9300-24H-A, C9300-24H-E, C9300-24H-EDU, C9300-24P-P, C9300-24T-P, C9300-24U-10E, C9300-24U-A-UL, C9300-24UB-A, C9300-24UB-E, C9300-24U-E-UL, C9300-24U-P, C9300-24UXB-A, C9300-24UXB-E, C9300-24UX-P, C9300-48H-1A, C9300-48H-A, C9300-48H-E, C9300-48H-EDU, C9300-48T-10A, C9300-48U-10A, C9300-48U-A-UL, C9300-48UB-A, C9300-48UB-E, C9300-48U-E-UL, C9300-48UN-10A, C9300-48UN-10E, C9300-NM-2Y-RF, C9300-NM-2Y-WS, C9300X-12Y-A, C9300X-12Y-E, C9300X-24Y-A, C9300X-24Y-E, C9500-24Y4C-10E, C9500-24Y4C-A-CS33, C9500-24Y4C-A-RF, C9500-24Y4C-E-RF, C9500-48Y4C-1A-DUP, C9500-48Y4C-1E, C9500-48Y4C-A-CAP, C9500-48Y4C-A-RF, C9500-48Y4C-E-RF, C9500-48Y4C-P, C9606R-10A, C9606R-1A, C9606R-48S-BN-A, HX-FI-64108, N3K-C34180YC-RF, N3K-C34180YC-WS, N3K-C34200YC-SM, N3K-C34200YC-SM=, N9K-C93180YC-EX24=, N9K-C93180YC-EX-BCMN, N9K-C93180YC-FX24=, N9K-C93180YC-FX3S, N9K-C93180YC-FX3S=, N9K-C93180YC-FX-H, N9K-C93180YC-FX-WS, N9K-C93216TC-FX2, N9K-C93216TC-FX2=, N9K-C93360YC-FX2=, N9K-C9336C-FX2-WS, N9K-C9348GC-FXP-H, N9K-C9348GC-FXP-WS, N9K-X97160YC-EX++=, NC55-32T16Q4H-AT=, NCS-5504-MBH, NCS-5508-MBH, NCS-5516, NCS-5516-MBH, NCS-5516-SYS, NCS-5516-SYS-BUN1, NCS-55A1-24Q6H-S, NCS-55A1-48Q6H, NCS-55A1-48Q6H=, NCS-55A1-48Q6H-RF, NCS-55A2-MOD-HD-S, NCS-55A2-MOD-HD-S=, NCS-55A2-MODH-SYS, NCS-55A2-MOD-HX-S, NCS-55A2MODSH-SYS, NCS-55A2-MOD-S-RF, NCS-55A2-MOD-S-WS, NCS-55A2-MODX-SYS, UCSC-P-M4D25GF, UCS-FI-64108, UCS-FI-64108-U, UCS-R2F-FI-64108
